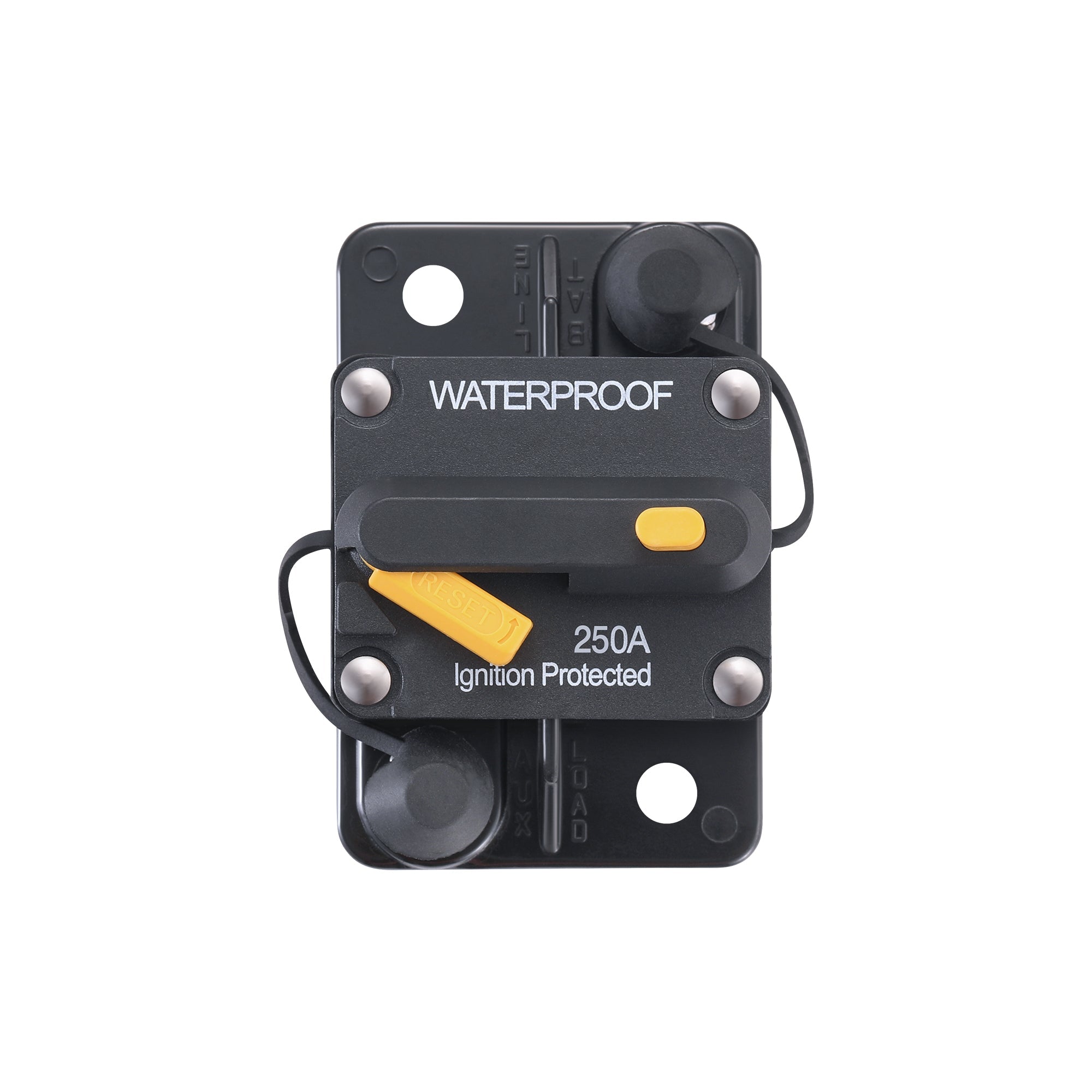

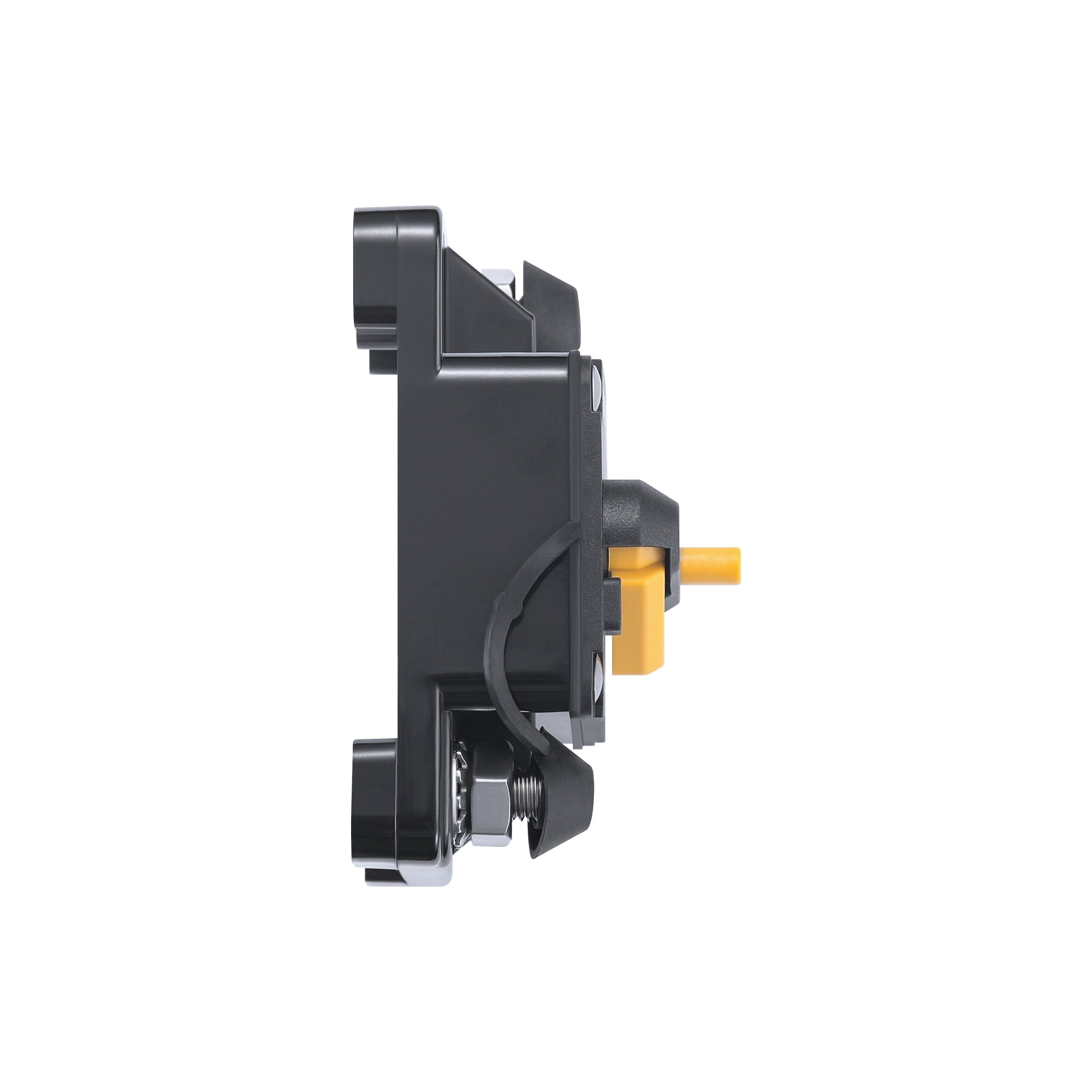

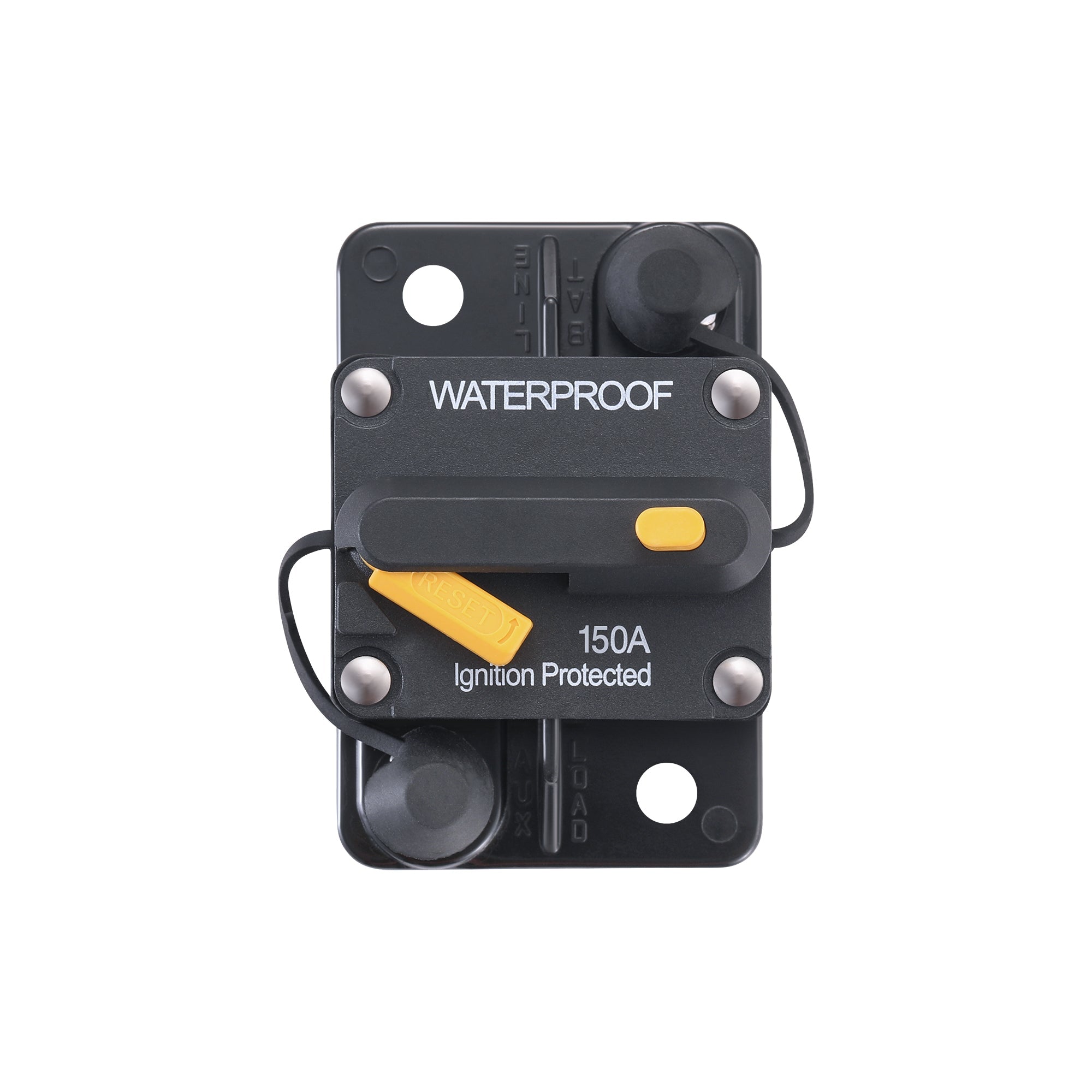

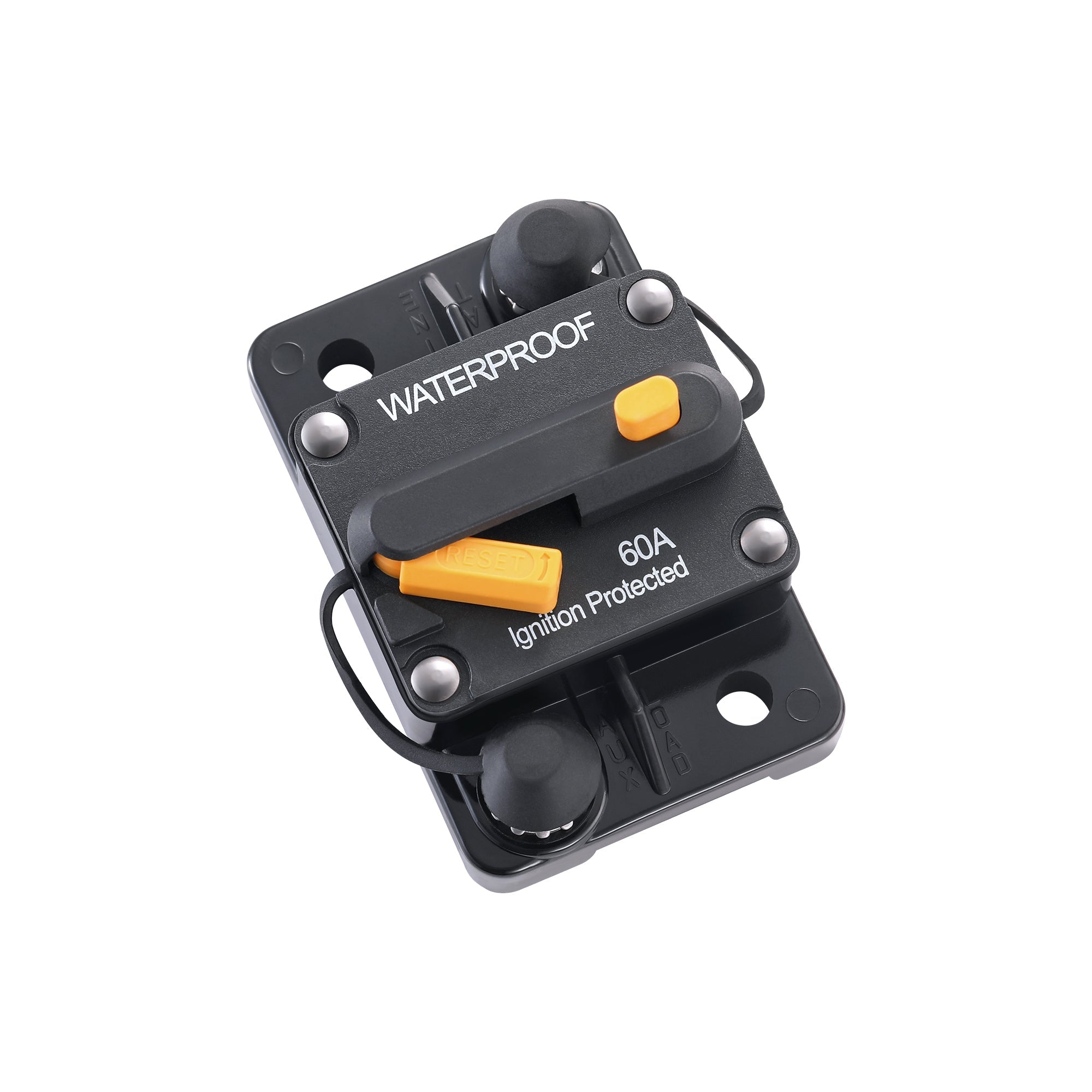

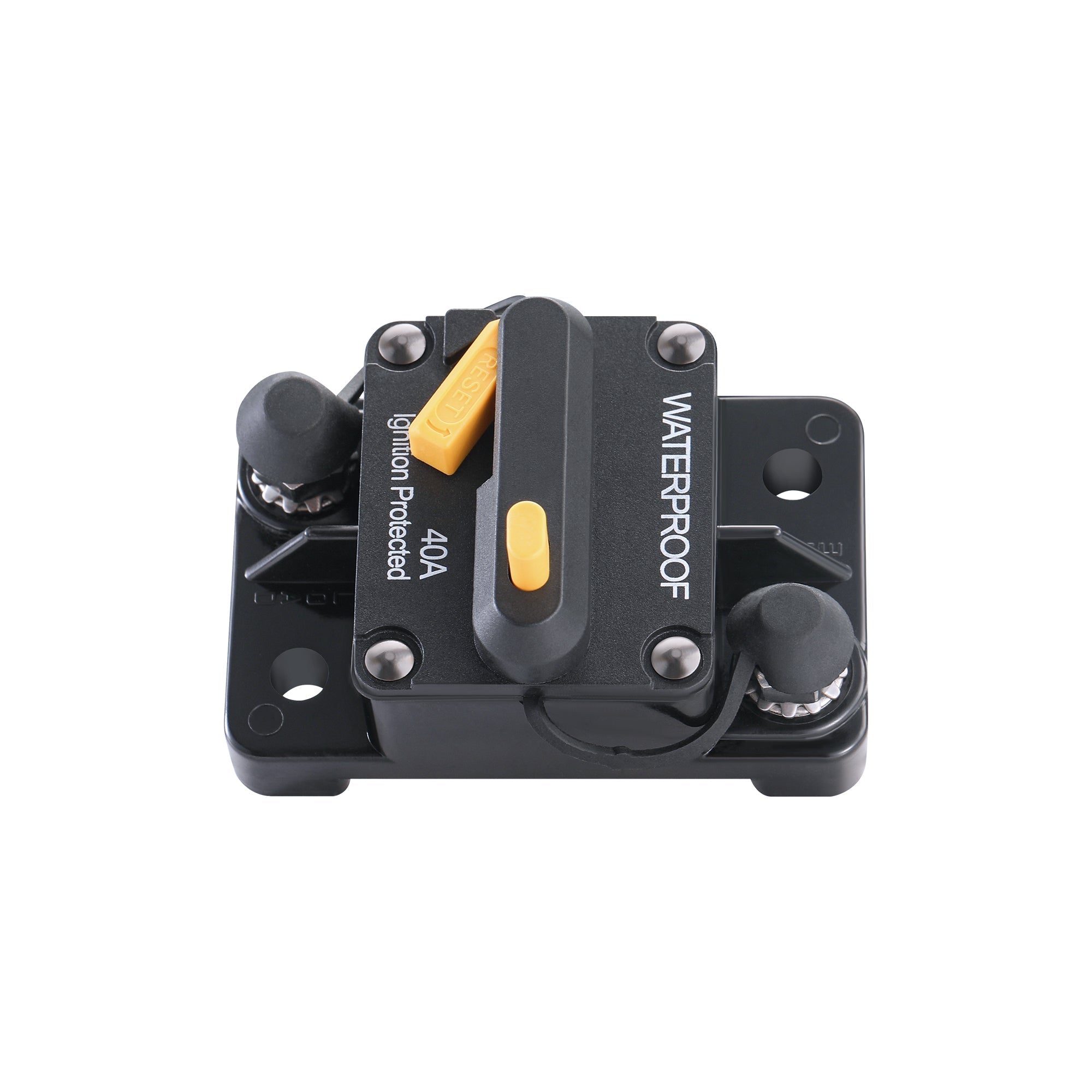

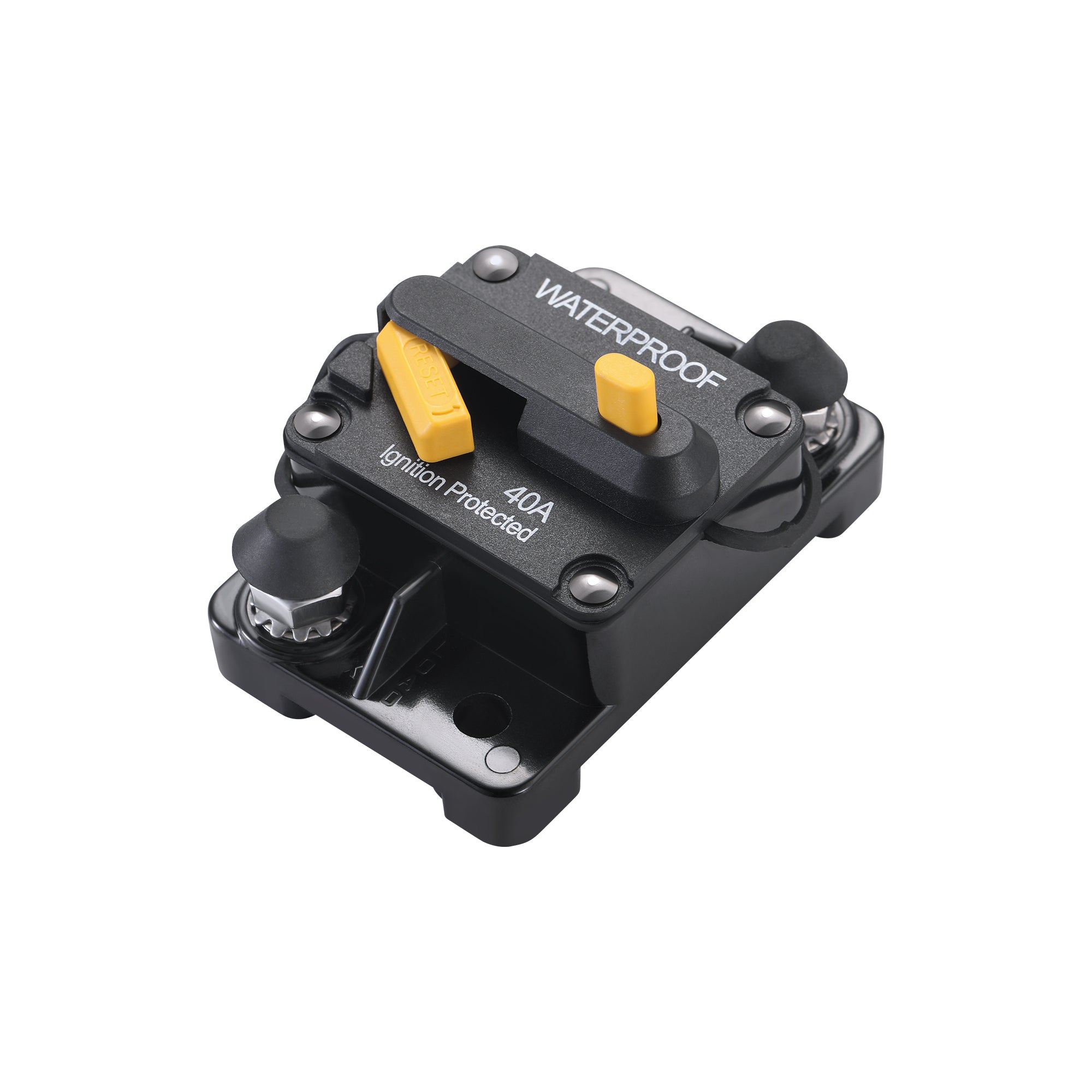

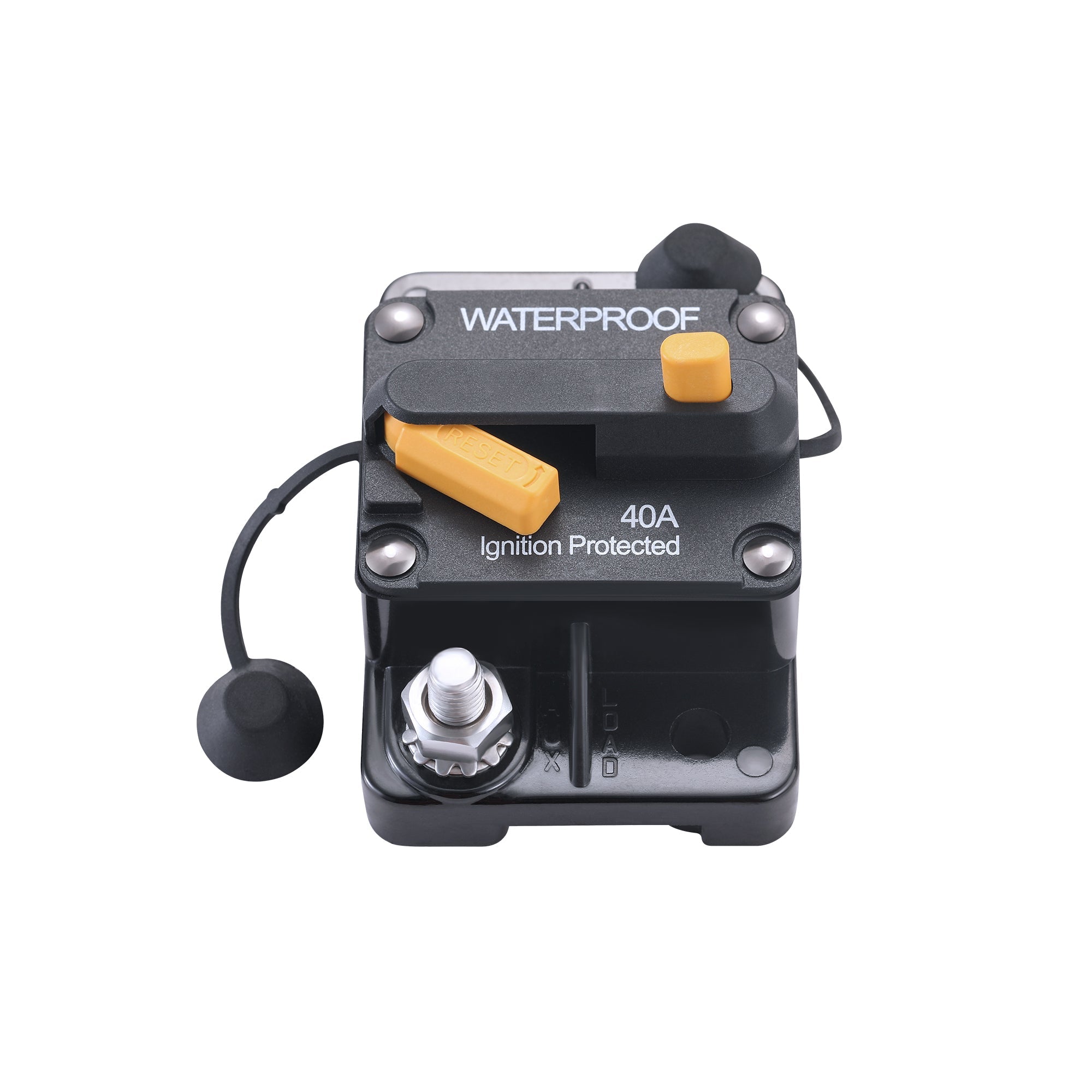

Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker | Choose Amp: 40A, 60A, 80A, 100A, 120A, 150A, 150A, 200A, 250A

SINGLE POLE THERMAL TYPE BREAKERS

Applications: Typically used in auxiliary and accessory circuits in truck, bus, RVs and marine systems. Others include battery chargers and DC audio systems, compartment and bilge area applications.

Specifications

• Rating: 25-250A, 30VDC; 48VDC
• Interrupt Rating: 3000A @30VDC
• Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C)
• Storage Temperature Rating: -30°F (-34°C) to 300°F (149°C)
• Materials: Black UL-rated 94V0 thermoses plastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
• Marking: Standard marking includes amp ratings and part numbers. Custom markings also available.
• Termination: 1/4-28 or 3/8-16 threaded studs.
• Torque Rating: S 50 in-lbs (5.6N·m) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N·m) max. Threaded insert option has a max torque of 25 in-lbs (2.8N·m).
• Ingress Protection Rating: IP67 Custom markings also available.
• Compliance: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
