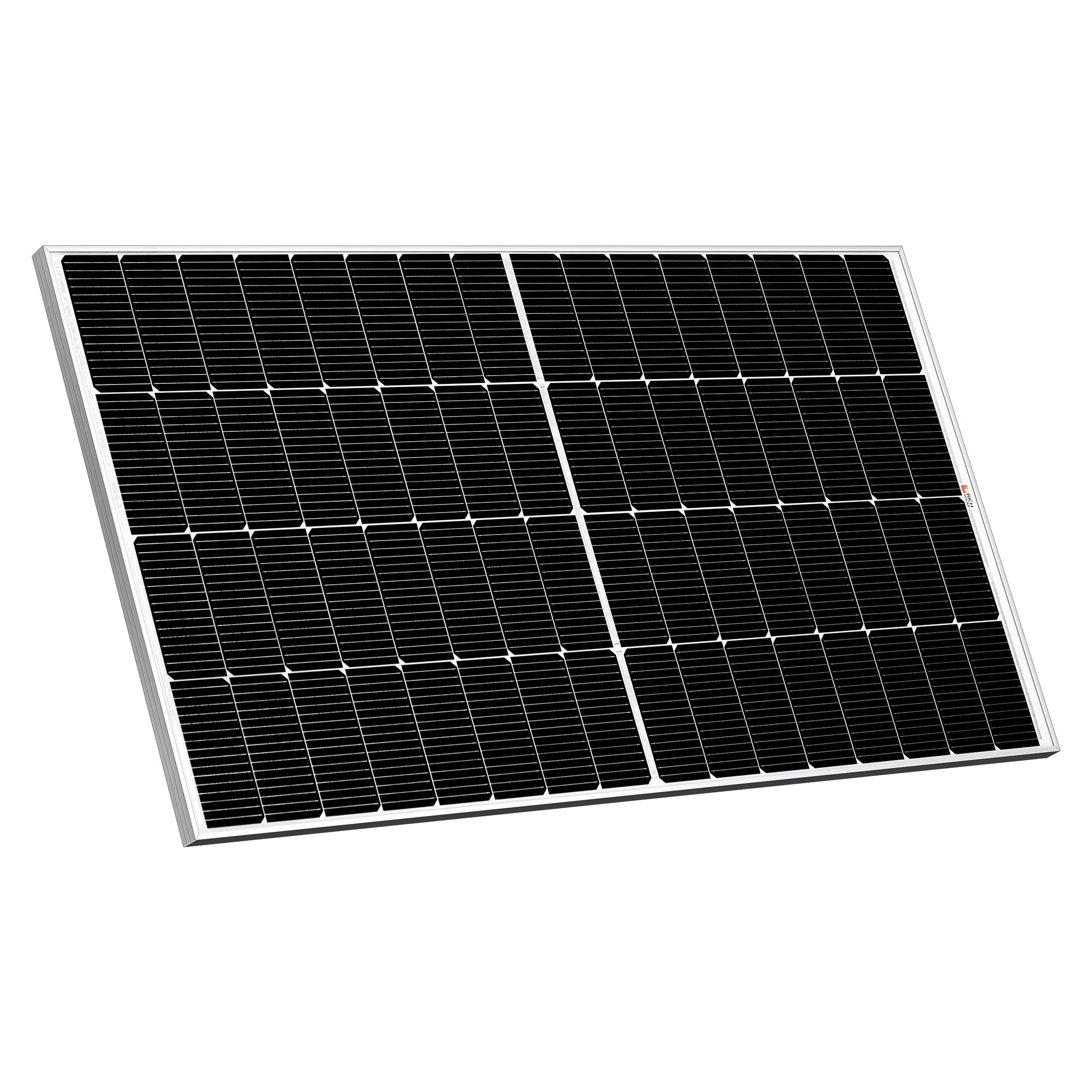

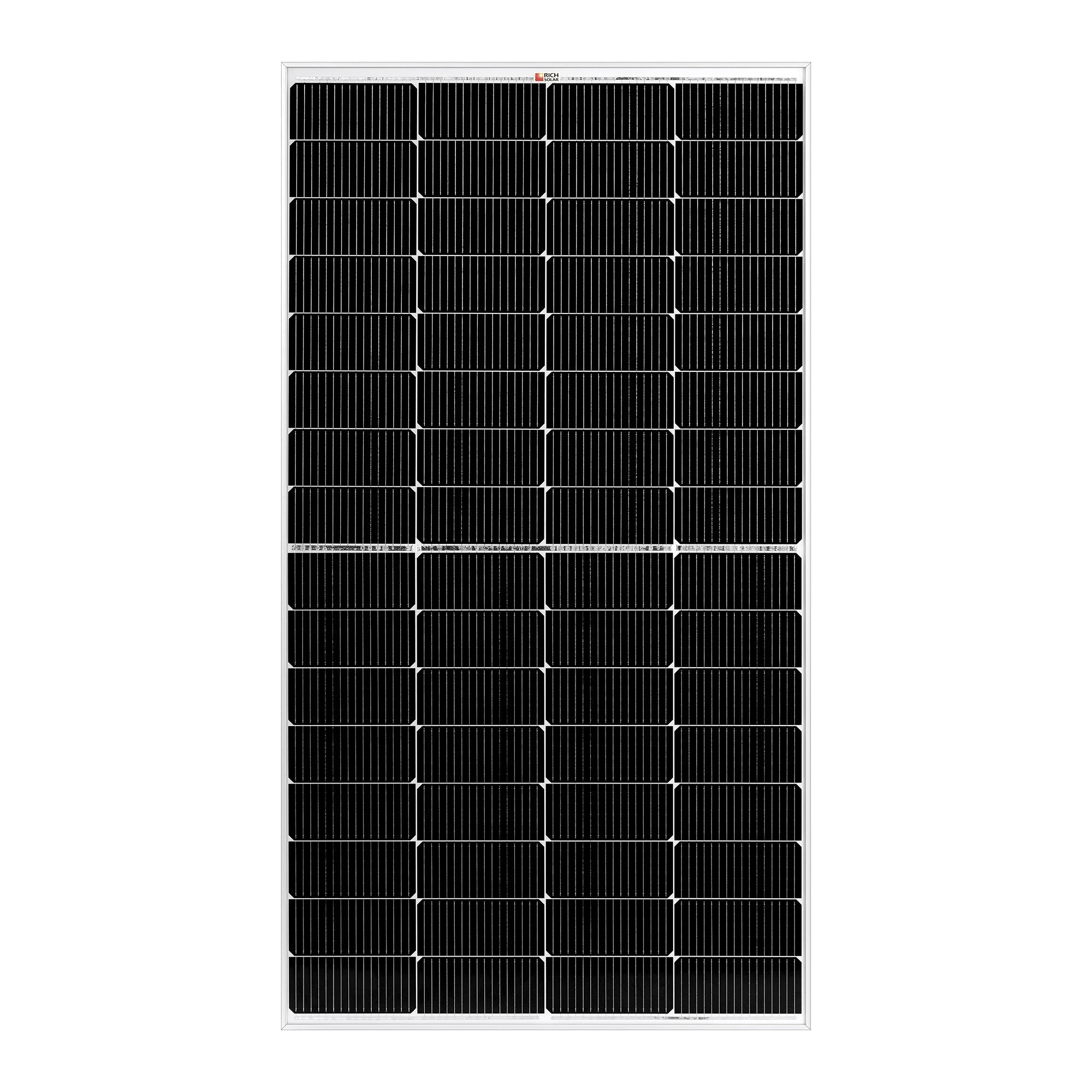

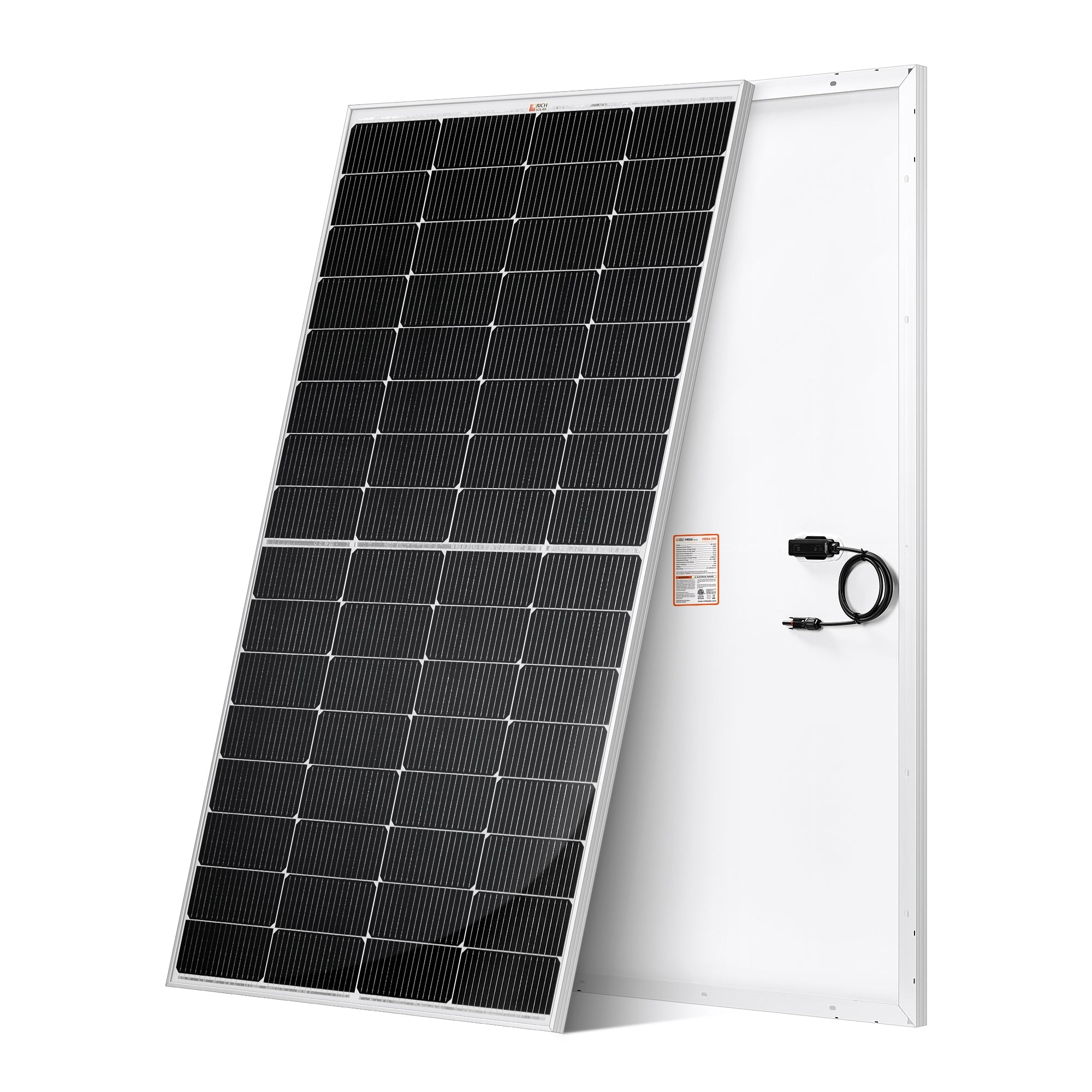

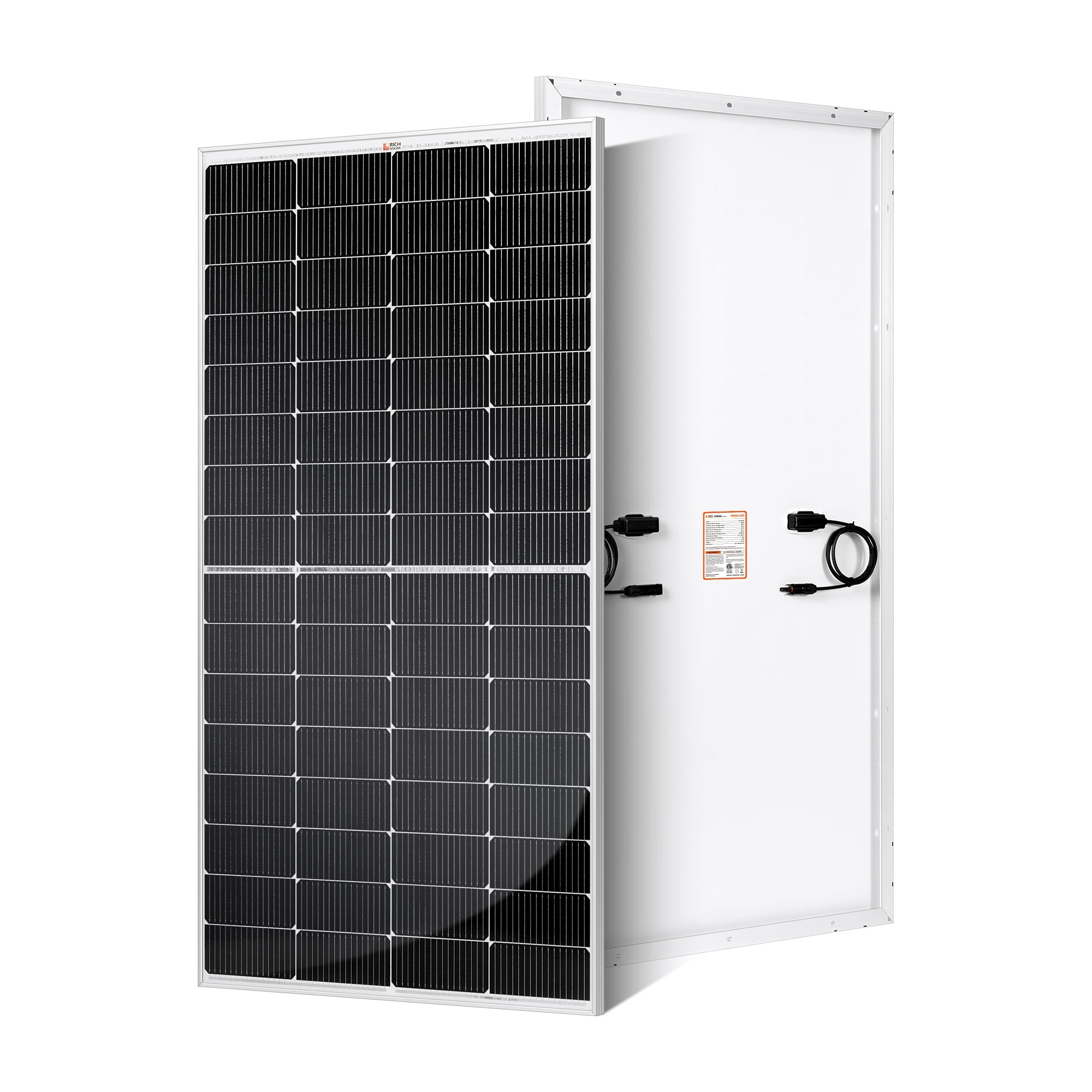

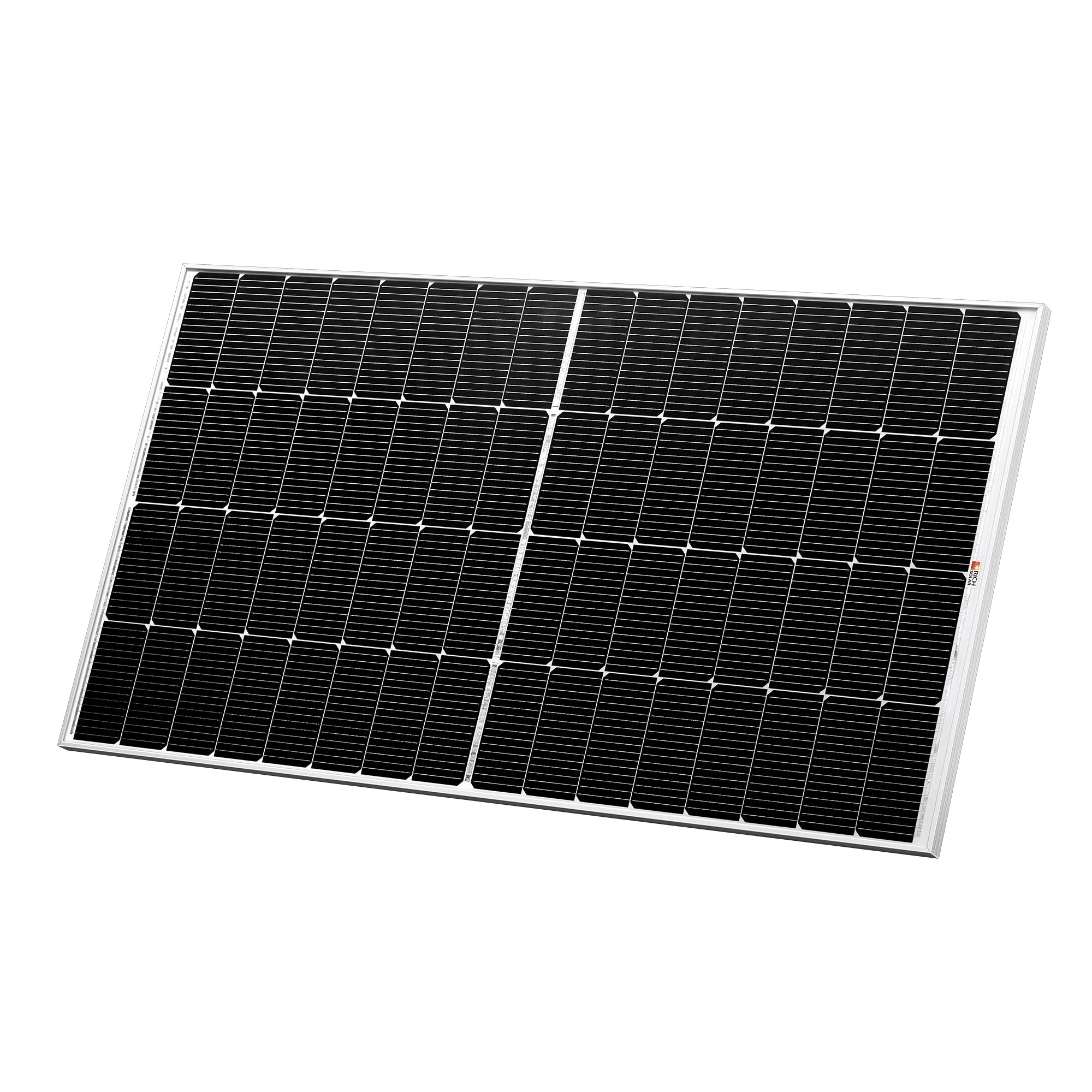

MEGA 220 | 220 Watt Solar Panel | Premium 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified
Buy with confidence knowing that your solar investment will last for the long haul.
Features
- 15-busbar solar cell configuration

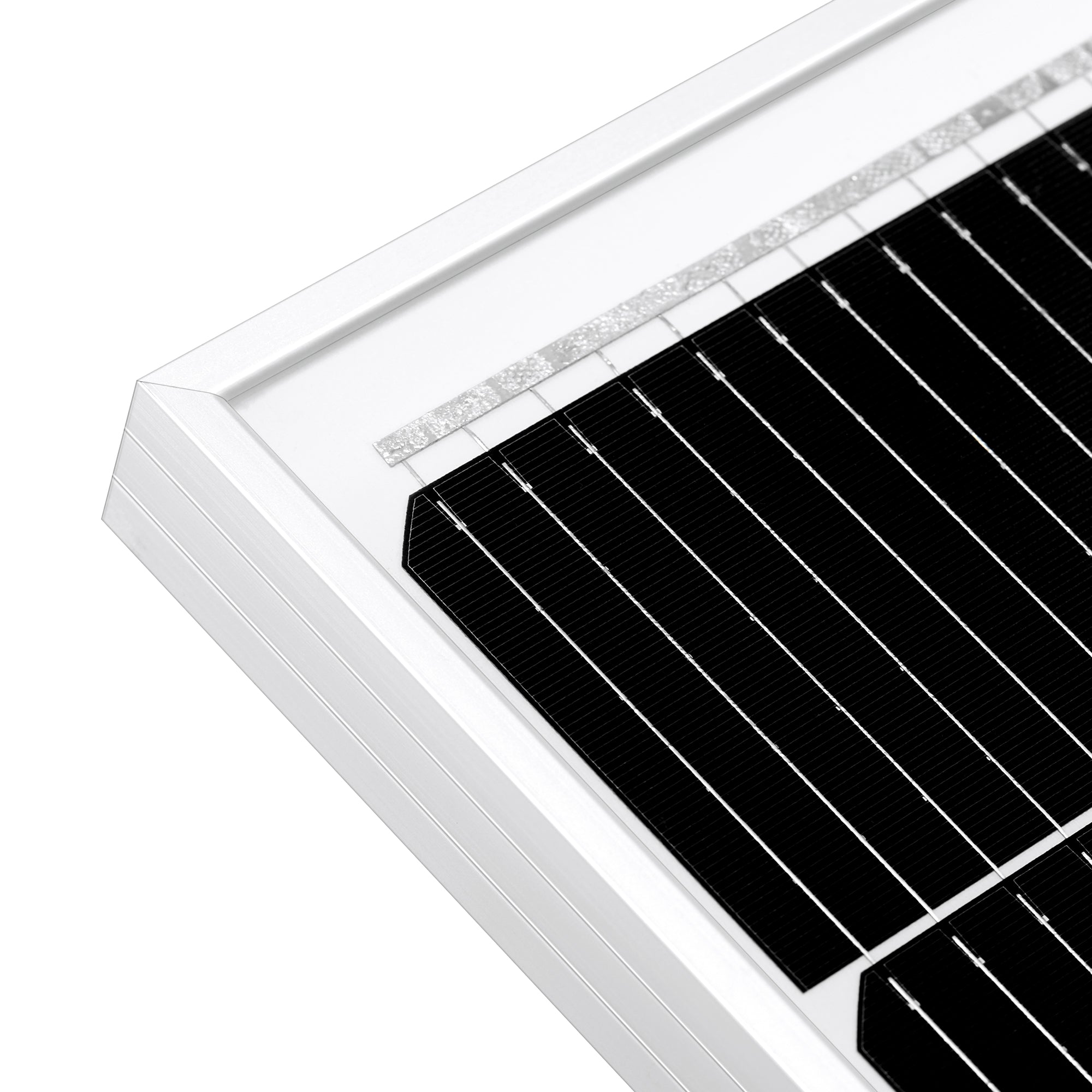

- Lightweight, anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry standard quick-connect cables work in series or in parallel
- Excellent low light performance on cloudy days, mornings and evenings
- Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
- Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty
- 25-year output warranty
- 10-year workmanship warranty
Built-in Components
- 220 watt solar panel

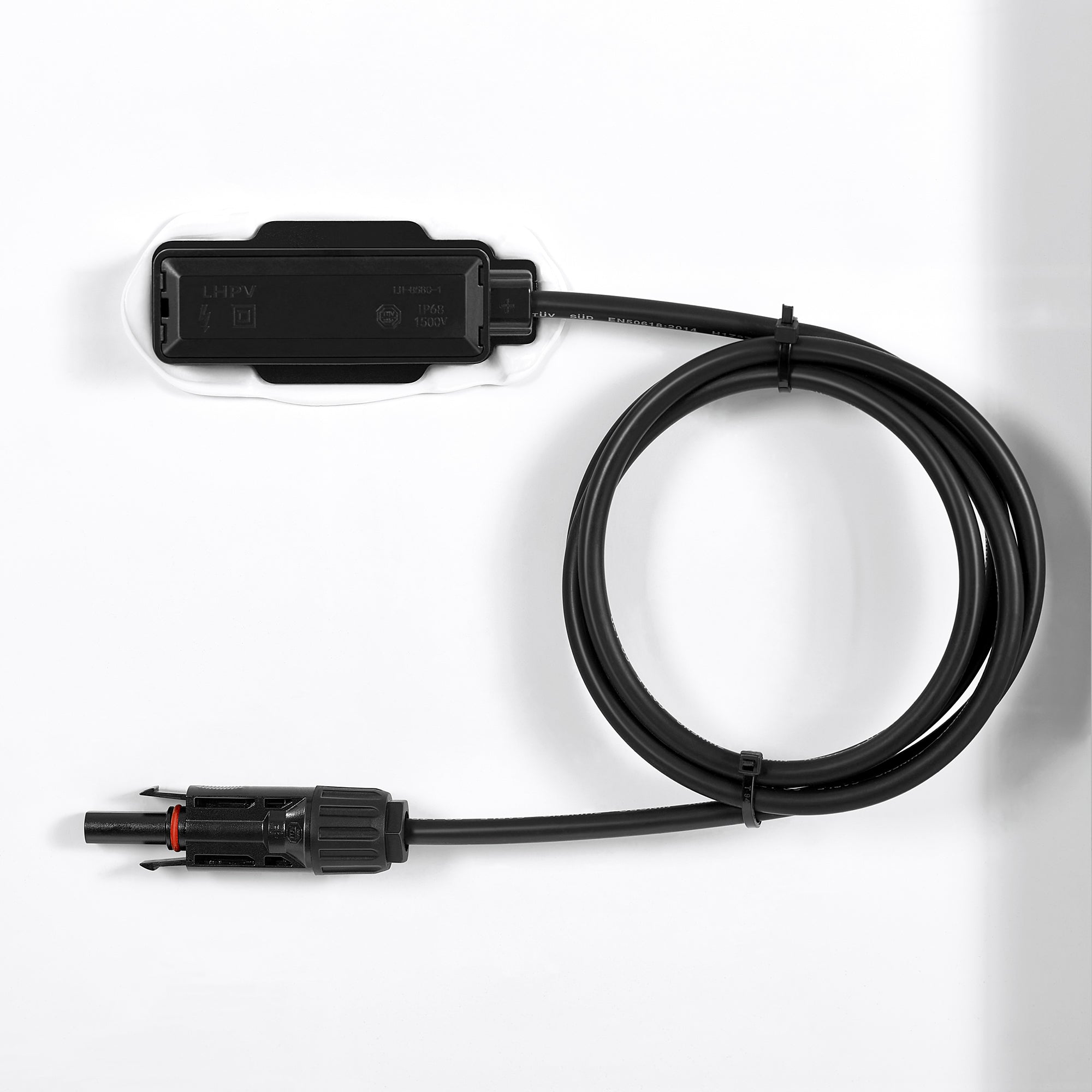

- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box

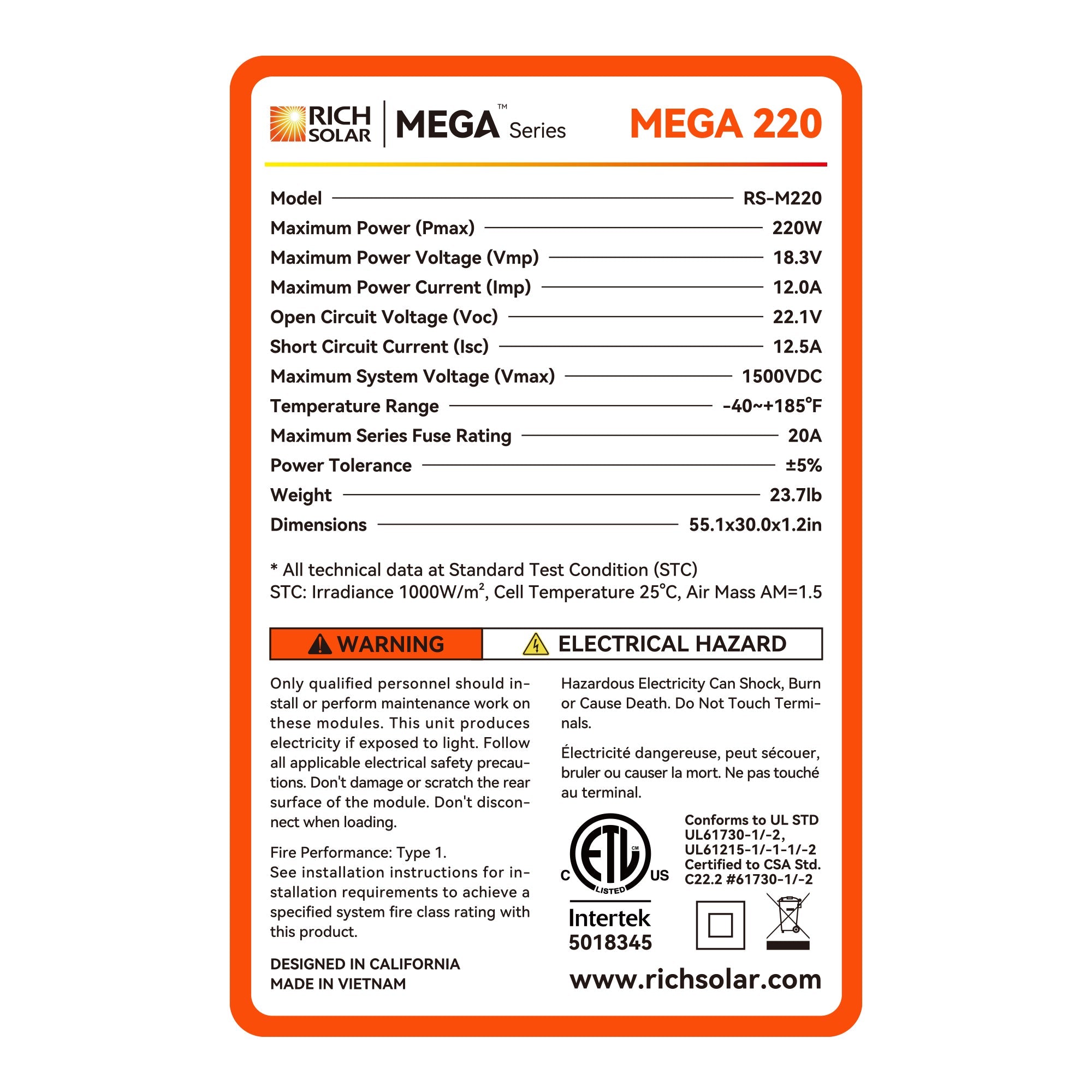

Specifications
- Model: RS-M220
- Maximum Power(Pmax): 220W
- Maximum Power Voltage(Vmp): 18.3V
- Maximum Power Current(Imp): 12.0A
- Open Circuit Voltage(Voc): 22.1V
- Short Circuit Current(Isc): 12.5A
- Maximum System Voltage(Vmax): 1500 VDC
- Temperature Range: -40~ +185℉
- Weight: 23.7lb (10.7kg)

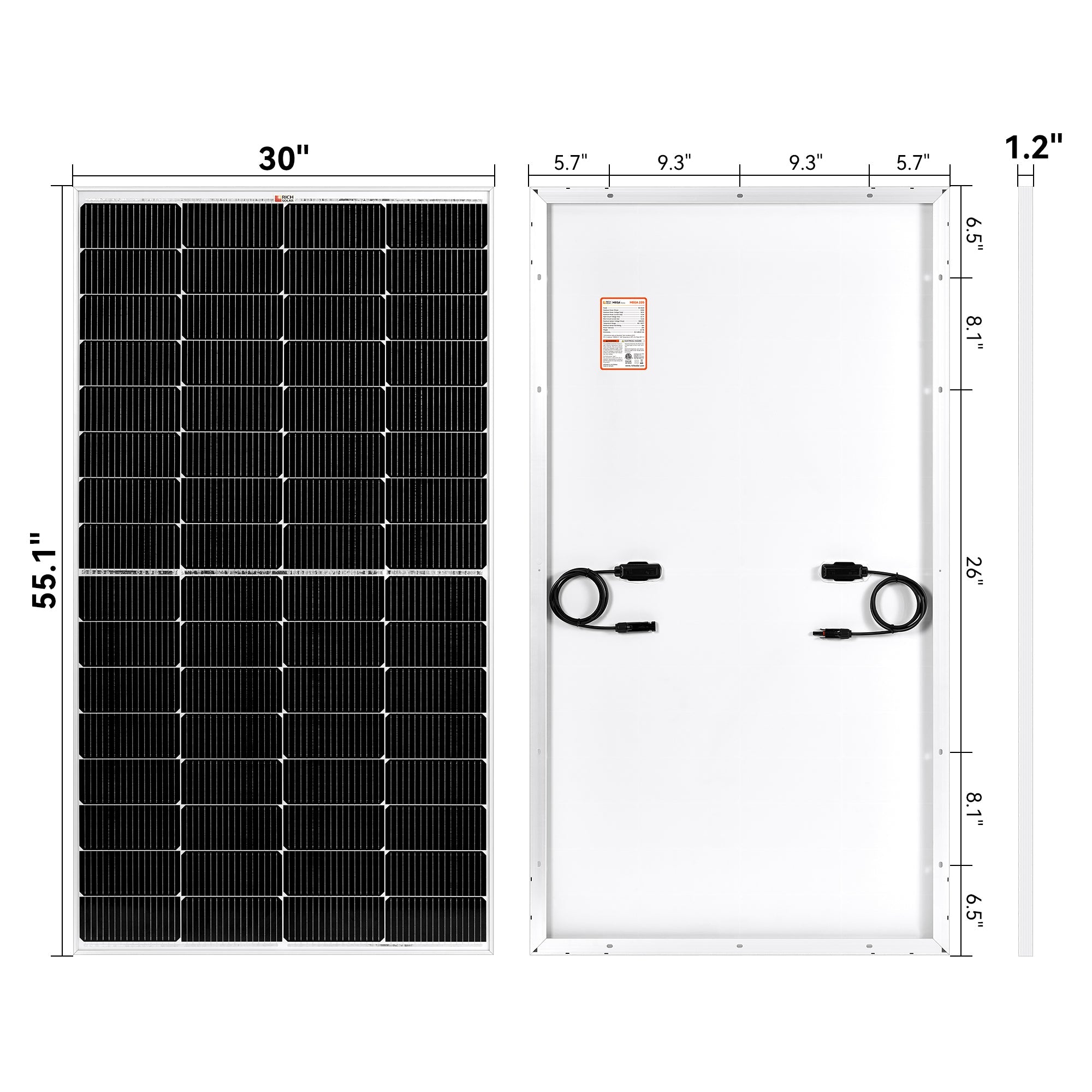

- Dimensions: 55.1x30.0x1.2in (1400x760x30mm)
