6560W Complete Off-Grid Solar Kit

Name: 6560W Complete Off-Grid Solar Kit
Brand: Rich Solar
SKU: SRx3-H6548x1-M410x16
Price: 10399.99 USD
Availability: InStock

$10,399.99

$12,699.99

Save $2,300.00

Quantity

We accept

25-Year 80% Output Warranty

Buy with confidence knowing that your solar investment will last for the long haul.

Product info

Everything you need to go completely Off-Grid!

This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.

Best value on the market! Ships from California! Call us for any questions! Free technical support!

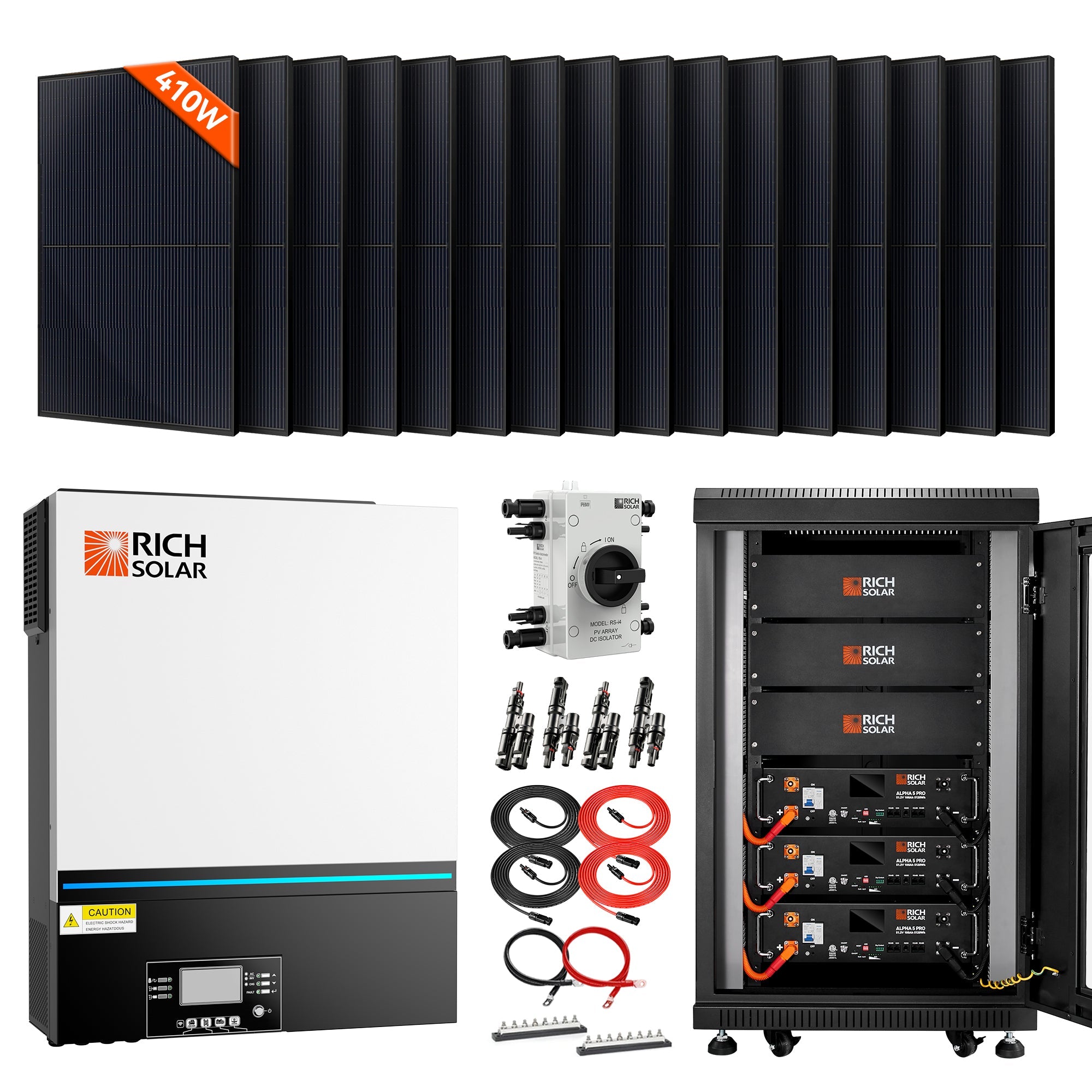

This kit includes:

🗹 16 x MEGA 410 Watt Monocrystalline Solar Panels (RS-M410)

🗹 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)

🗹 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)

🗹 1 x Free Battery Rack (RS-RK)

🗹 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

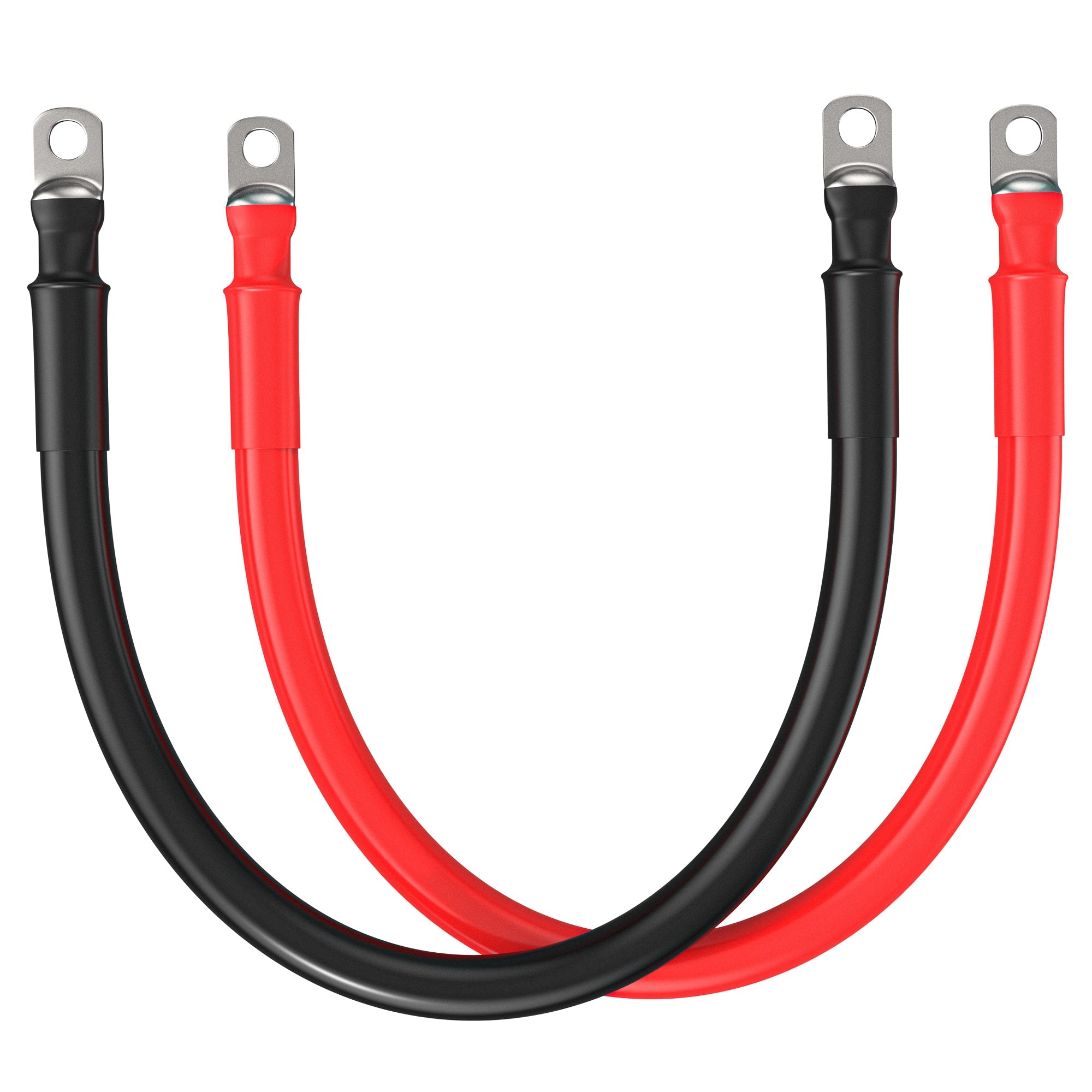

🗹 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

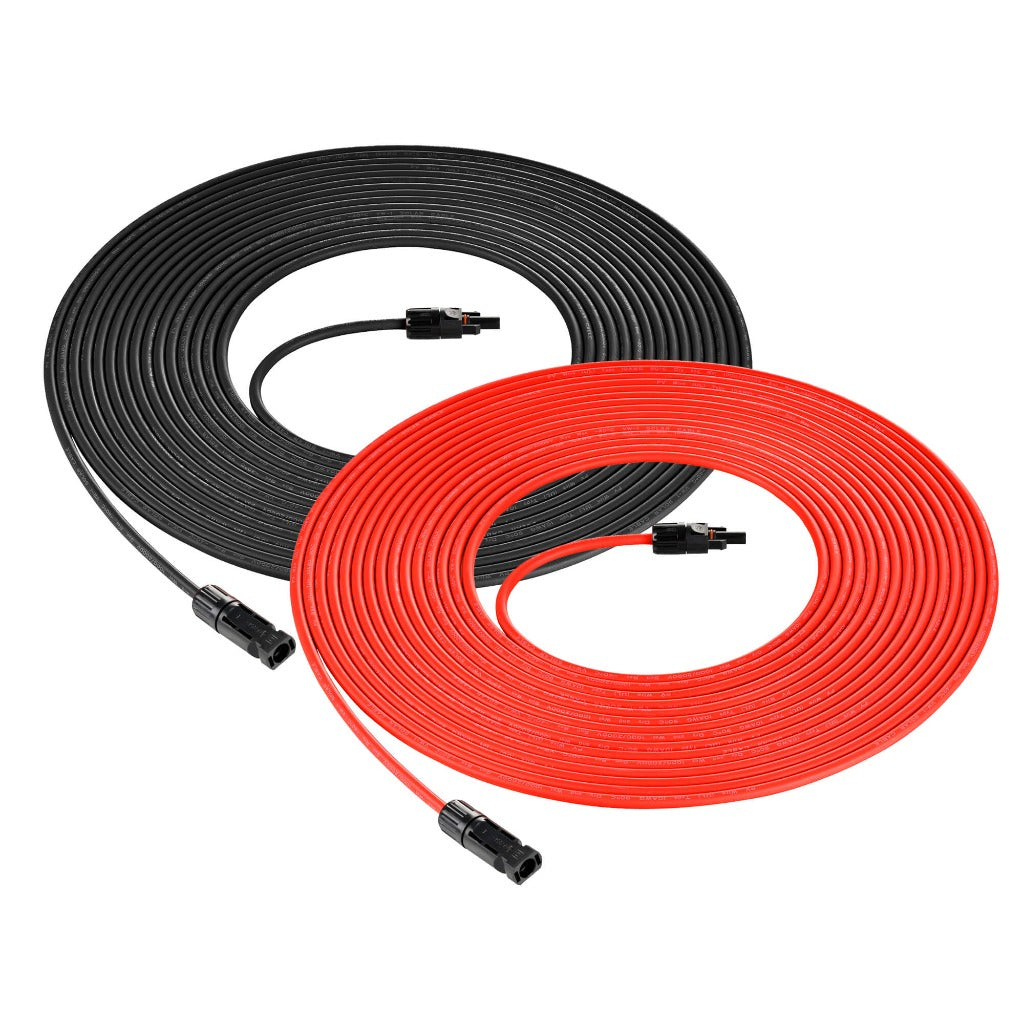

🗹 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)

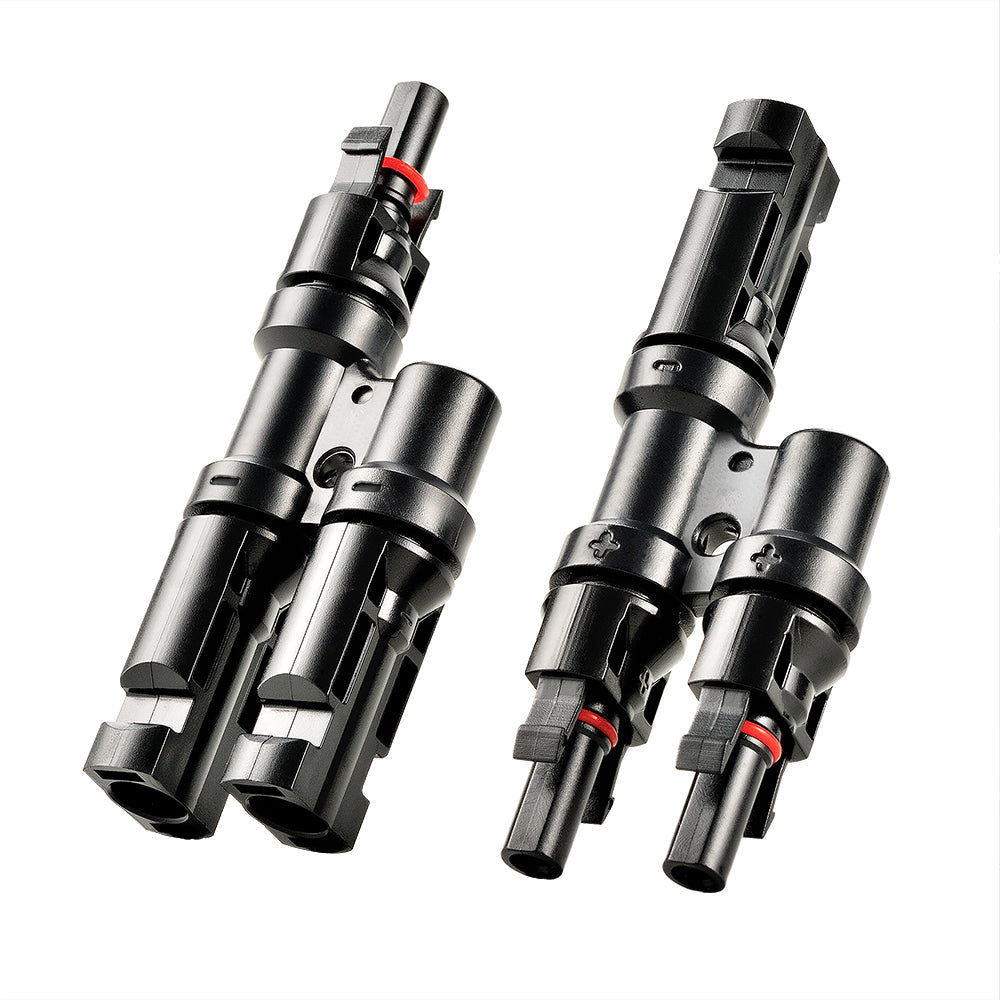

🗹 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)

🗹 2 x Busbar 600 AMP

How to Set up 6548 Hybrid Inverter in Split-Phase or Parallel Operation

When Not to Update the Firmware on the 6548 Hybrid Inverter

ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup

Tech Specs

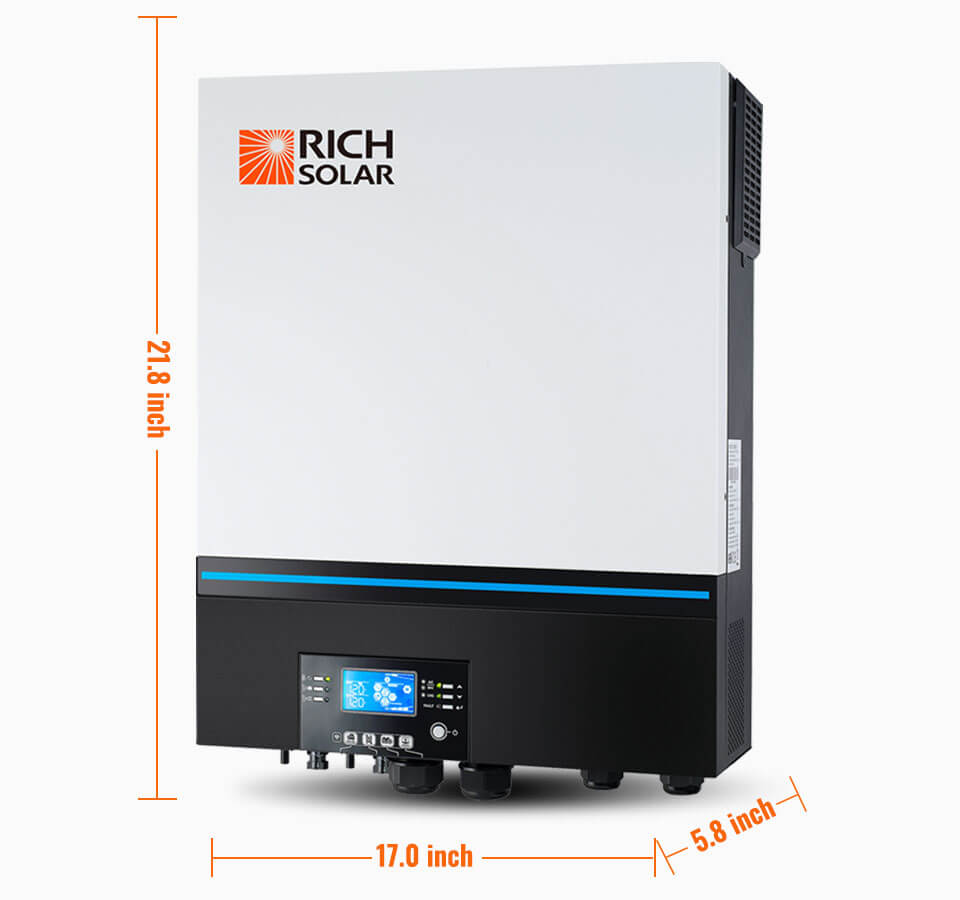

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

Rated Inverter Power: 6500VA/6500W
Parallel Capability: Yes, 6 Units
Input Voltage: 120 VAC
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
Efficiency (Peak): 90% ~ 93%
Waveform: Pure Sine Wave
Battery Voltage: 48 VDC
Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Charge Current: 120A
Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
Net Weight: 40.6 lb
Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
Compliance Safety: UL
Warranty: 5 Years

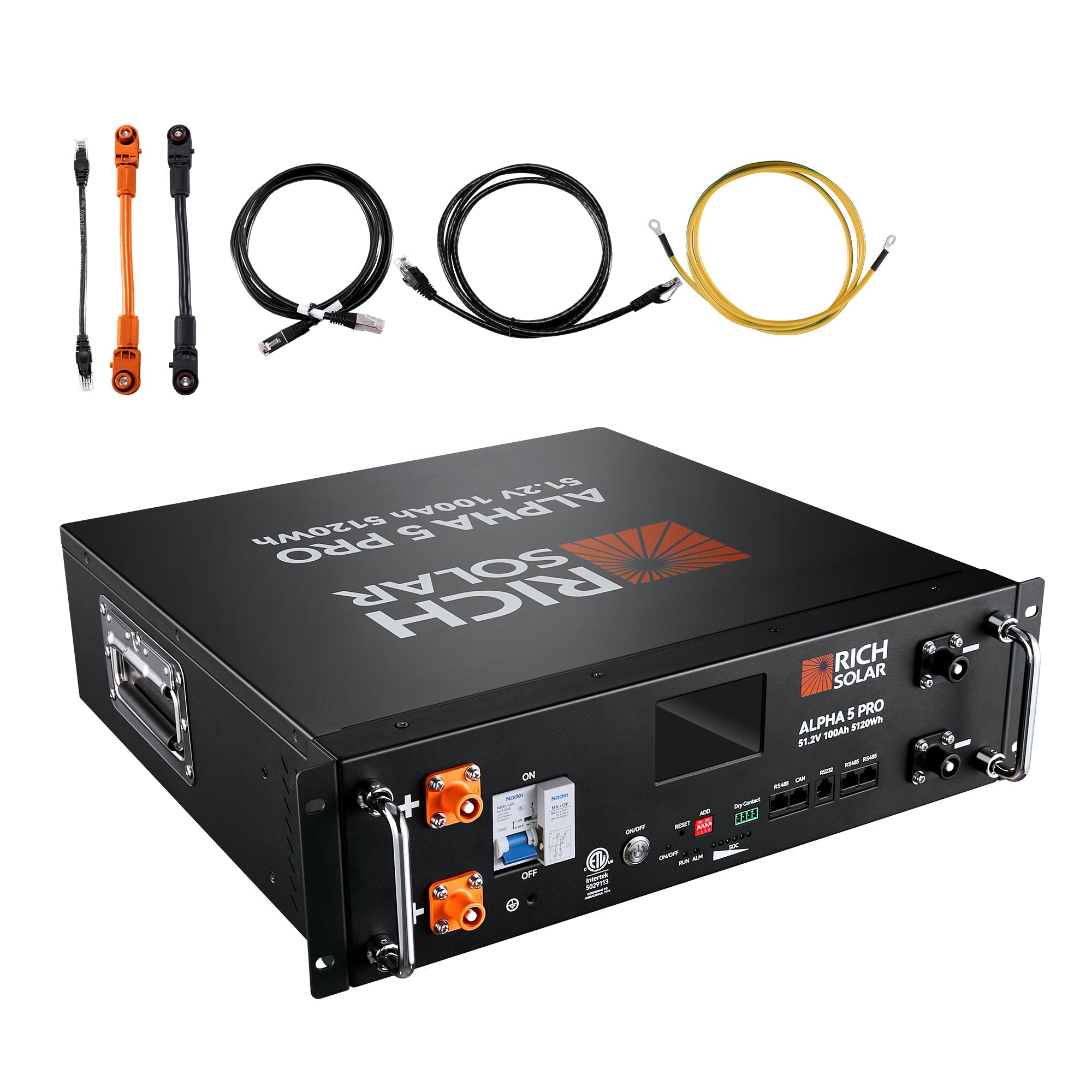

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Expected Cycle Life: >7000 Cycles
Energy: 5.12kWh
Continuous Charge Current: 100A
Continuous Discharge Current: 100A
Waterproof: IP65
Dimensions: 17.7″L x 17.8″W x 5.2″H
Net Weight: 99.2 lb
Warranty: 10 Years Manufacturer Defect

MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

Maximum Power(Pmax): 410W
Maximum Power Voltage(Vmp): 31.3V
Maximum Power Current(Imp): 13.1A
Maximum System Voltage(Vmax): 1500 VDC
Module Efficiency: 20.97%
Net Weight: 45.2 lb
Dimensions: 67.9 x 44.6 x 1.2 in
Warranty: 25 Years

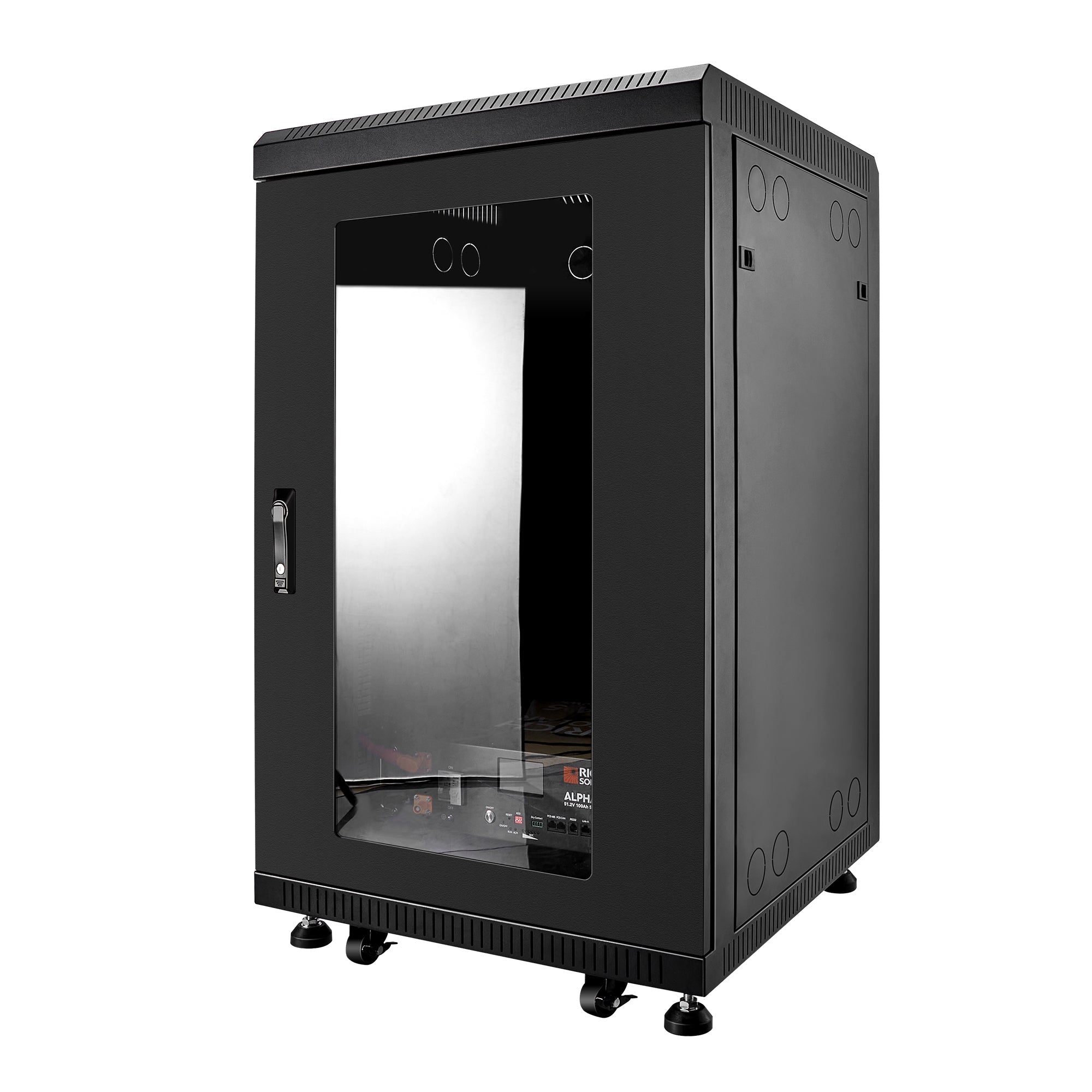

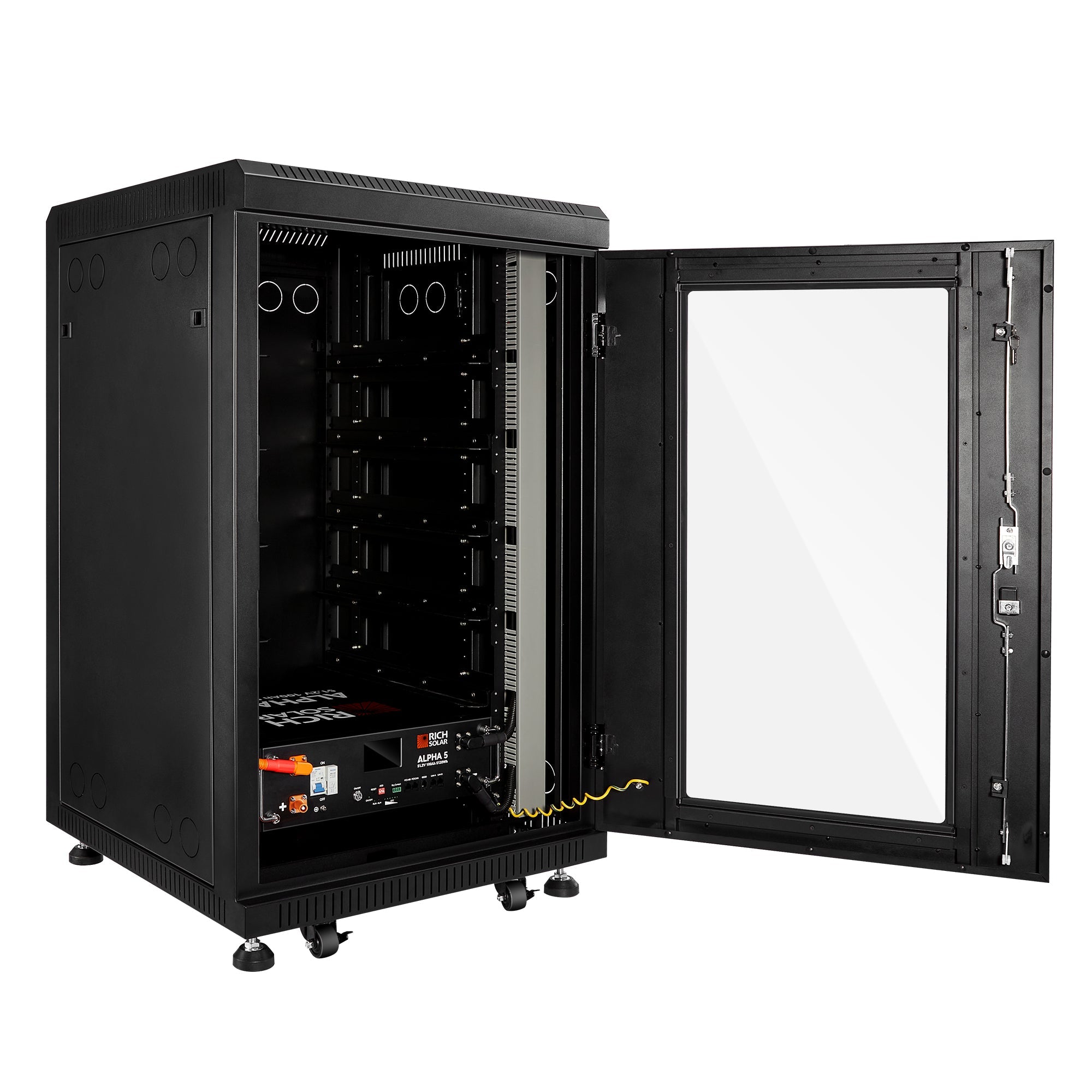

BATTERY SERVER RACK

Dimensions (LxWxH): 27.6 x 27.6 x 44 in
Net Weight: 196 lb

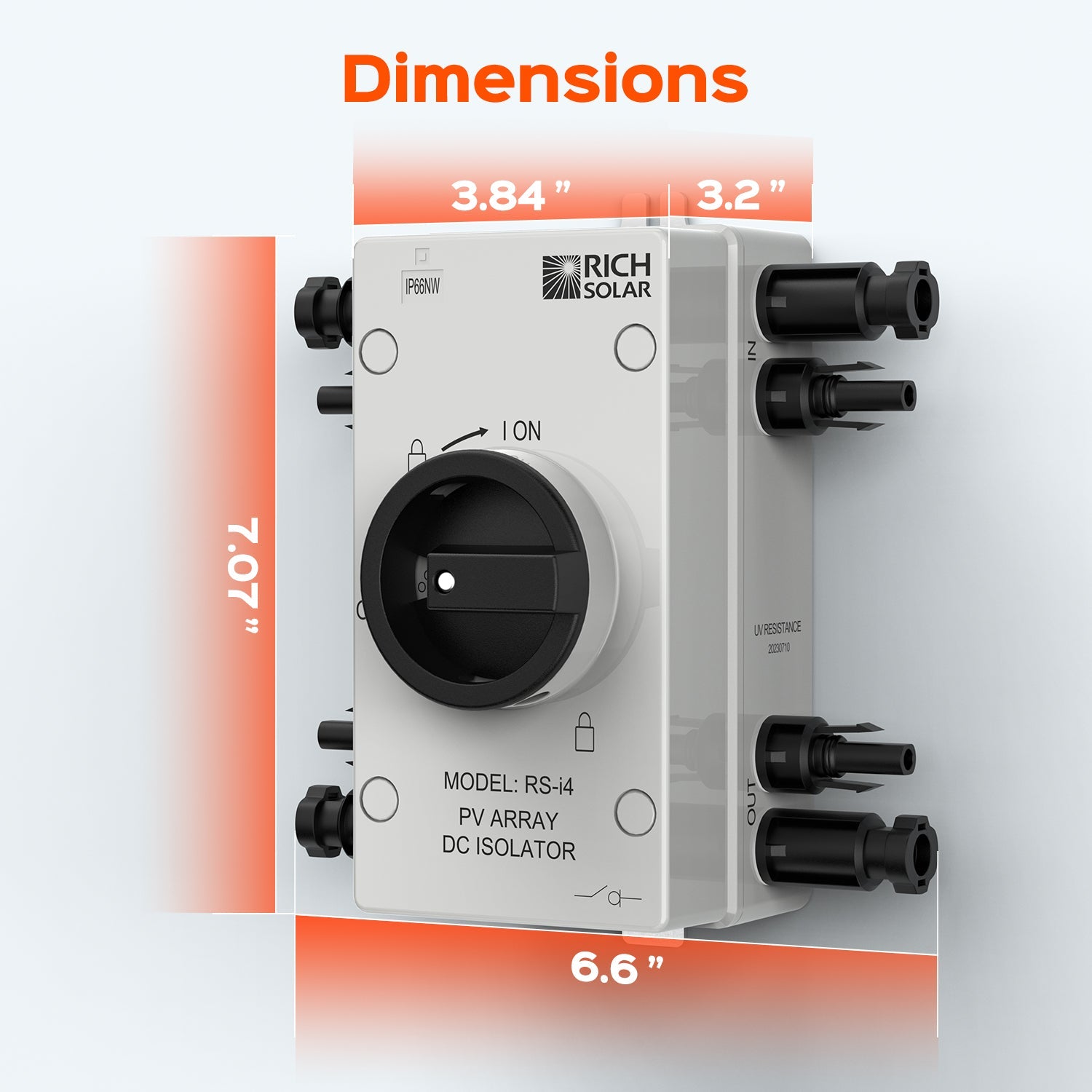

SOLAR PV DC Quick Disconnect Switch (RS-i4)

1500 Volts @ 32 Amps
Waterproof: IP66NW
Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
Net Weight: 1.7 lb
Warranty: 10 Years

User Manual & Specification

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

ALPHA 5 PRO | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

SOLAR PV DC Quick Disconnect Switch (RS-i4)

Shipping

Fast & Free Shipping Nationwide

We offer free shipping on all orders within the continental U.S. through our network of warehouses. Once you place your order, you’ll receive a confirmation email, and we’ll begin processing it right away.

For most items, you can expect them to ship within 2-4 business days. Delivery typically takes an additional 3-7 business days, either through FedEx or USPS. Please keep in mind that weather, traffic, carrier troubles, or other unforeseen circumstances can affect shipping times.

We’re committed to making the shipping process smooth and worry-free so you can enjoy your new solar products without delay!

Warranty

Comprehensive Warranty for Peace of Mind

We stand behind the quality of every product we sell, offering a full manufacturer’s warranty to ensure lasting performance.

Please check out the warranty page below for a detailed breakdown of warranties for each product.

Amazing power for our cabin

This kit has been powering our off-grid cabin for 3 months now and we couldn't be happier. Setup was straighforward and the output is exactly what we needed.

Perfect for off grid living

This 6560W Complete Off-Grid Solar Kit has transformed our remote property. The split phase capability is exactly what we were looking for. Might expand in the future. Aureus Solar delivered it quickly and everything was well packaged.

Exceeded my expectations

Exceeded my expectations in every way highly recommend it!

Aureus Solar quality confirmed

Aureus Solar really delivers quality products.

Not what I expected

Had some issues with the inverter right out of the box and customer service was slow to respond. Eventually got it working but was frustrating.

1 2 3

FAQs

Where are you located and where do you ship?

We are US owned and operated with our main headquarters located in Phoenix, Arizona. We ship orders anywhere within the continental US from our distributed network of warehouses operated by our logistics partners in California.

How much is shipping?

We're proud to provide FREE SHIPPING on all of our products throughout the Continental United States.

When will my products arrive?

Within 1-2 weeks if you order today. Once your order leaves the warehouse, depending on where you're located, transit time will take between 3-7 business days.

What happens after I place my order?

As soon as you place your order, you will receive an email from us with your confirmation details. Please keep this email for your records. After we receive your order we will begin preparing your order for shipment. As soon as your order ships, you will receive an email with tracking information. For larger items you will receive a phone call from the delivery team to schedule your delivery appointment. You must be home to accept and sign for the delivery during your appointment as scheduled.

When will my products arrive?

Within 1-2 weeks if you order today. Once your order leaves the warehouse, depending on where you're located, transit time will take between 3-7 business days.

Do you offer installation?

Installing our products may require specialized skills or additional tools, which are not supplied by Aureus Solar. Any installation expenses or fees resulting from improper setup or usage are not covered by us. Customers are responsible for carefully following all installation guidelines and ensuring they have the necessary equipment and expertise before beginning the process.

If you are not experienced with technical installations, we highly recommend hiring a qualified professional. Aureus Solar cannot be held responsible for any damages, losses, or extra costs that may arise from incorrect installation or misuse of our products.

Essential Tools for Solar System Installation and Maintenance

Having the correct tools is crucial-not only for convenience but also for the safety, efficiency, and longevity of your solar setup.

Multimeter
Use: Measures voltage, current, and resistance, making it indispensable for troubleshooting and system diagnostics.
Recommended features: DC/AC measurement, continuity testing, auto-ranging, and a clamp function for measuring current without disconnecting wires.
MC4 Crimping Tool and MC4 Connectors
Use: Necessary for attaching and maintaining MC4 connectors, which are the standard for solar panel wiring.
Note: A quality crimping tool ensures secure, weatherproof connections.
Cable Ties and Cable Management Accessories
Use: Keep wiring neat, organized, and protected from wear, reducing the risk of electrical issues over time.

Please note that Aureus Solar does not supply or reimburse for these tools. However, having them on hand can greatly assist with troubleshooting and maintaining your system, helping to ensure both safety and optimal performance.

Do you provide financing?

We sure do! To access your financing offer, please select Shop Pay Installments as your payment method in Step 3 of the checkout process. Please note that you will need to input a debit card to receive your offer but you can still back out after that step.

What is the warranty period for my purchase?

All Aureus Solar customers receive full manufacturer warranty coverage, as Aureus Solar is an authorized distributor for every brand offered on our website. This means you are entitled to the complete manufacturer warranty for each product purchased through us.

Please note that certain manufacturers may require customers to pay for return shipping on warranty claims made after the initial 30-day period. If you encounter any product issues, our team is available to assist you in coordinating directly with the manufacturer. For detailed warranty terms, always consult the product manual or the manufacturer’s warranty documentation included with your purchase.

Warranty Duration:
Warranty periods vary depending on the manufacturer and specific item. For most solar panels, product warranties typically cover 10–25 years, with performance warranties often guaranteeing at least 80% of original output by the end of the term. Inverter, battery, and accessory warranties may differ, so refer to the included documentation for exact timelines.

If you need to file a warranty claim, you may contact the manufacturer directly or submit a support request through Aureus Solar by sending an email to support@aureussolar.com. Please be aware that submitting a support request does not guarantee immediate approval of a replacement or repair. Our technical support team will review your request and may request additional information to help troubleshoot or document the issue, as required by the manufacturer.

To process a warranty claim efficiently, please be prepared to provide the following details:

Product serial number
Date of purchase
Any warning, error, or fault messages
A description of the problem
Photos or videos that help identify the issue

Coverage Outside the Lower 48 States:
Manufacturer warranties generally apply only within the contiguous 48 states of the U.S. If you require warranty service outside this area, you will need to send the product to the mainland at your own expense. Customers are responsible for all shipping costs to and from the manufacturer for warranty, repair, or replacement services. Using freight services is recommended for transporting items from your location to the manufacturer.

For the most accurate and up-to-date information, always review the warranty terms provided with your product and contact Aureus Solar for assistance as needed.
