800W Solar Premium Kit

Renogy 800 Watt 12 Volt Solar Premium Kit

The Renogy 800W 12V Premium Kit is designed for straightforward installation and is a cost-effective solution for those seeking off-grid power. This kit includes solar panels, a charge controller, all necessary wiring, fuses, and monitoring equipment, making it well-suited for both stationary and mobile solar applications.

On average, the Premium Kit can generate between 3.2 and 5 kWh of electricity per day, depending on sunlight conditions. The eight 100W solar panels are compact, conserving roof space while providing enough energy to support small and medium household devices such as lights, TVs, and coffee makers. This system is ideal for rooftops, RVs, boats, and campers, and can also be set up as a ground-mounted power source for outdoor appliances, emergency backup, or as a standalone energy system.

Kit Contents:

• Eight 100W monocrystalline solar panels

• One Rover Li 40A MPPT charge controller

• One 20ft 10AWG adaptor kit

• One 2ft 8AWG fuse cable

• One 8ft 8AWG tray cable

• Eight sets of mounting Z brackets

• One BT-1 Bluetooth module

• One 10A in-line fuse and one 40A ANL fuse

• Three pairs of solar Y branch connectors

• Free shipping

• Lifetime customer support via email, live chat, and phone

Performance and Protection Features:

• Bypass diodes reduce power loss from shaded cells, ensuring strong performance even in low-light conditions.

• The system’s self-diagnostic capabilities protect against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

• The charge controller automatically detects 12V or 24V system voltages, with an LCD screen and LED indicators for real-time monitoring and customizable settings.

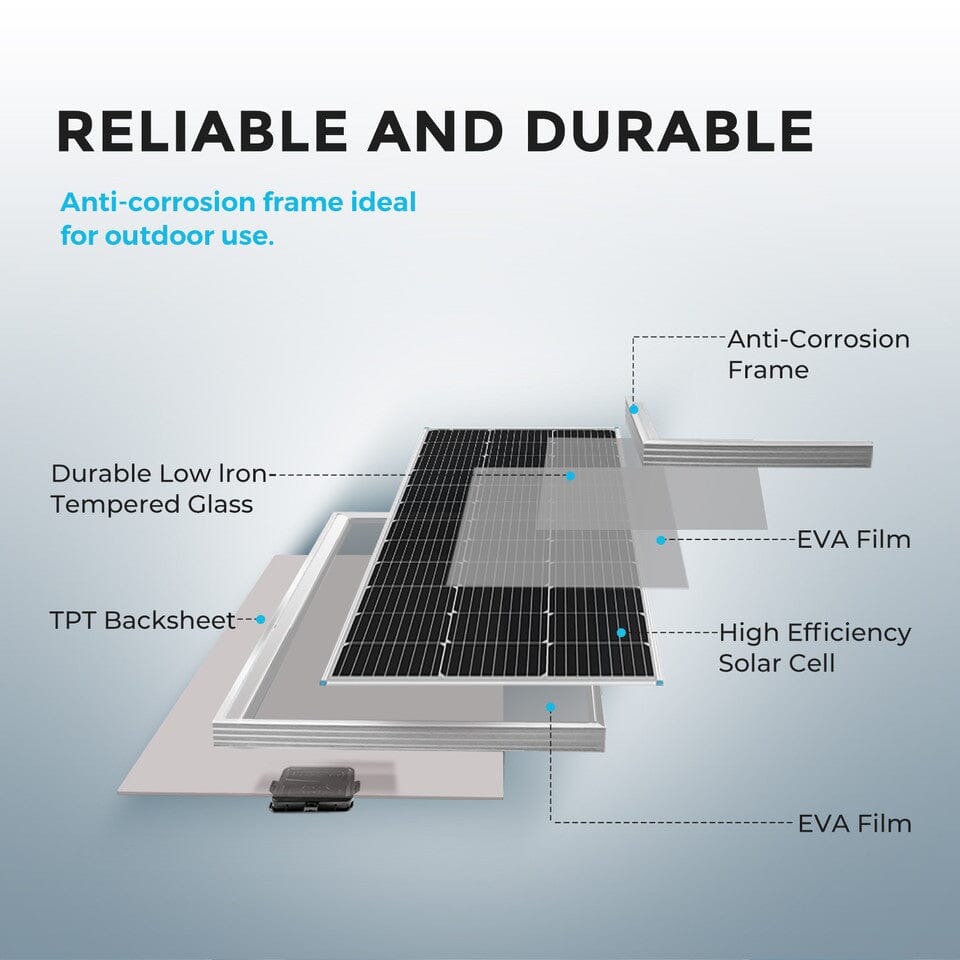

• Panels are built with advanced encapsulation and multi-layer laminations for durability and long service life, and are EL tested to prevent hot-spot heating.

• The IP65-rated junction box and IP67-rated connectors provide robust protection against dust and water, making the kit suitable for extended outdoor use.

• Pre-drilled mounting holes simplify installation, and included fuses add an extra layer of safety.

Key Specifications:
