4000W Off-Grid Solar Kit

Name: 4000W Off-Grid Solar Kit
Brand: Rich Solar
SKU: RS-CBK4000
Price: 10299.99 USD
Availability: InStock

$10,299.99

Quantity

We accept

25-Year 80% Output Warranty

Buy with confidence knowing that your solar investment will last for the long haul.

Product info

Looking for the best off-grid solar system? Our Cabin Kits are perfect for tiny homes, RVs, and many more off-grid applications. Start your solar adventure today with a great camper solar setup today!

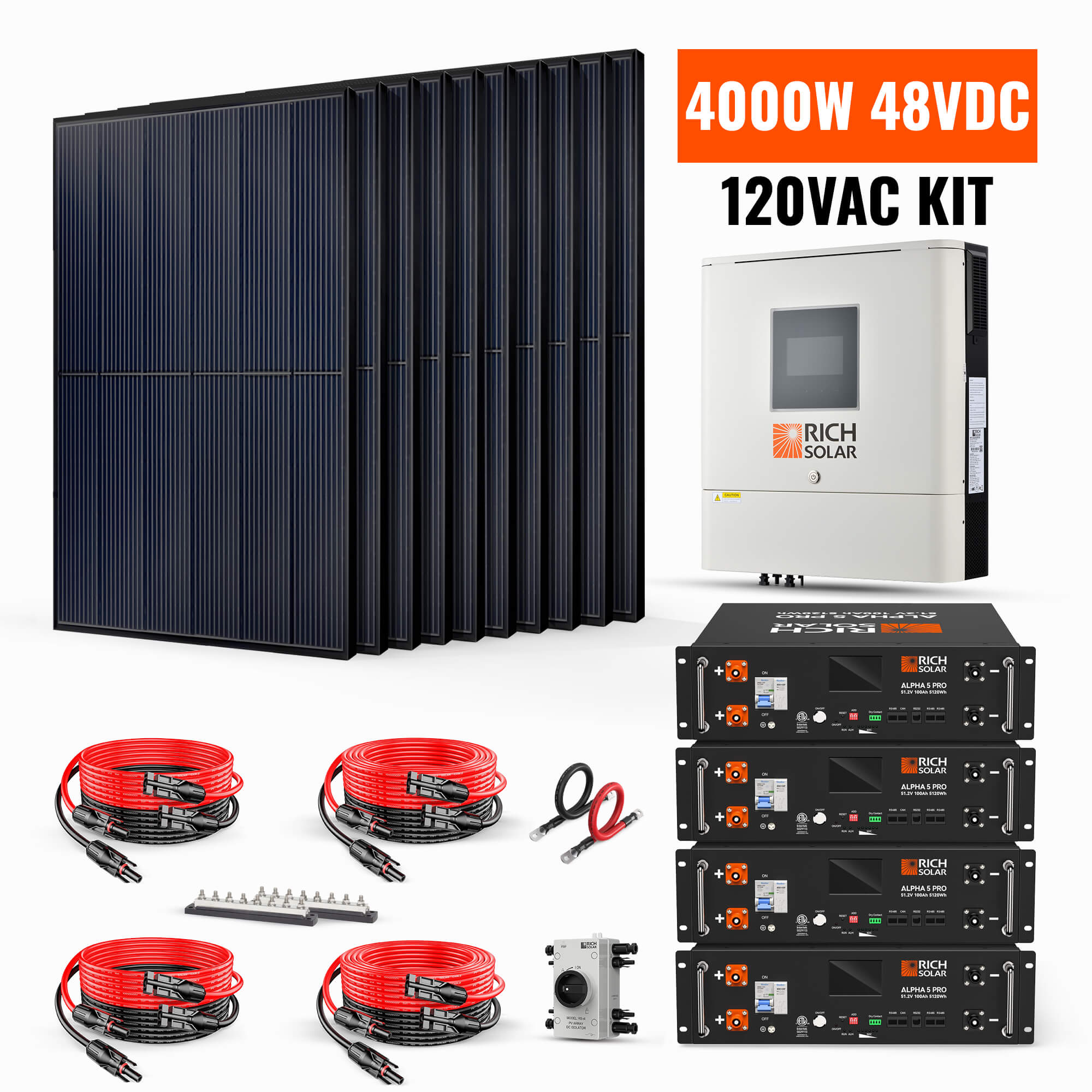

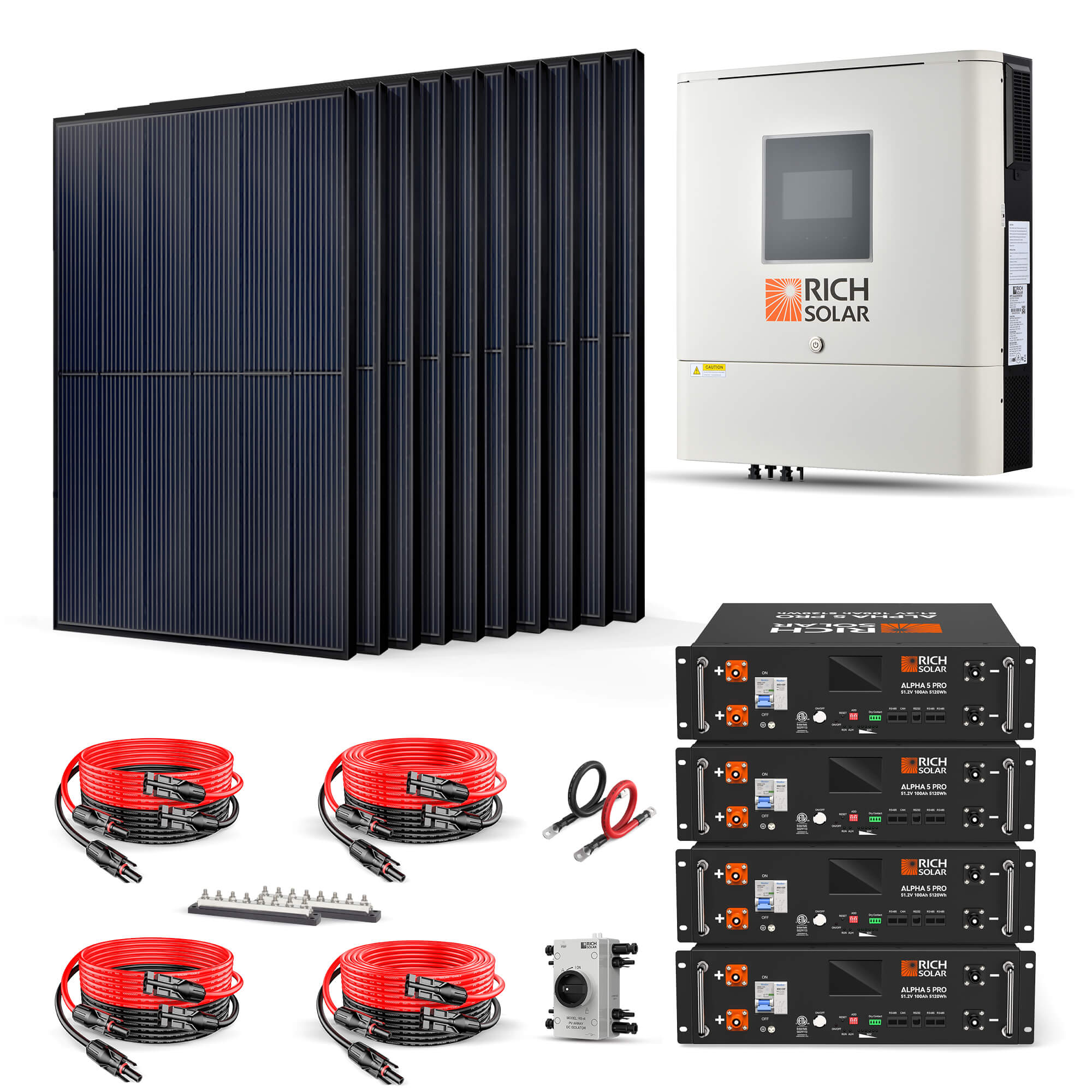

The 4000W 48VDC-120VAC Solar Kit Includes:

🗹 1x 6500W 48V Off-grid Solar Inverter (H6548S)
🗹 10x MEGA 410W Solar Panel (RS-M410-10)
🗹 4x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P1)
🗹 2x Busbar 600 AMP
🗹 2x 10AWG 30FT Extension Cable (RS-30102)
🗹 2x 10AWG 10FT Extension Cable (RS-10102)
🗹 1x PV DC Quick Disconnect (RS-i4)
🗹 1x 4/0 AWG Battery Cables 5FT (RS-4/0A5F3)

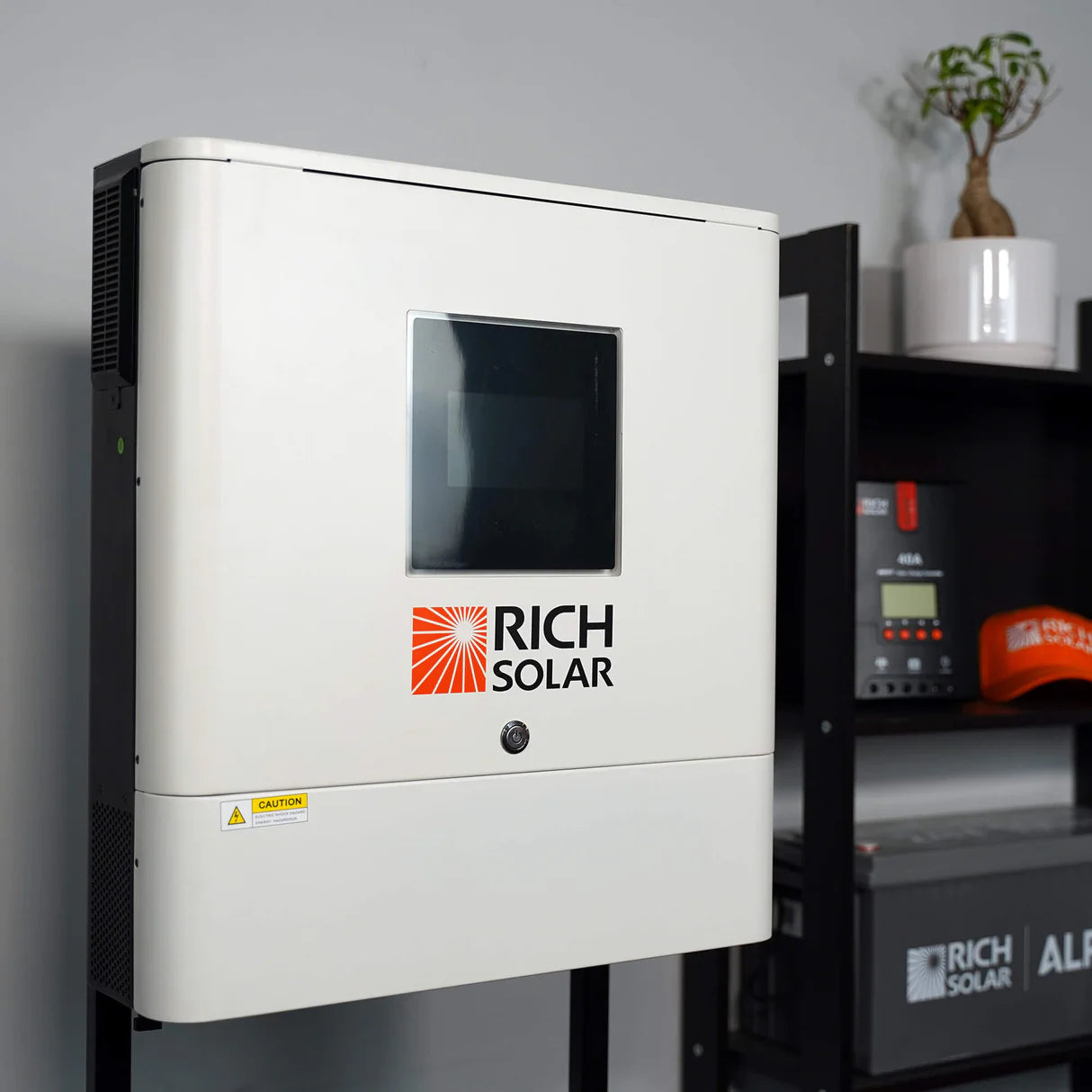

Tech Specs Inverter

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

Voltage: 120 VAC
Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
Surge Power: 13000VA
Efficiency (Peak): 91%
Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
No Load Power Consumption: <70W
Optional DC Voltage: 12 VDC ± 5%, 100W
Dual Outputs: Yes

BATTERY

Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC

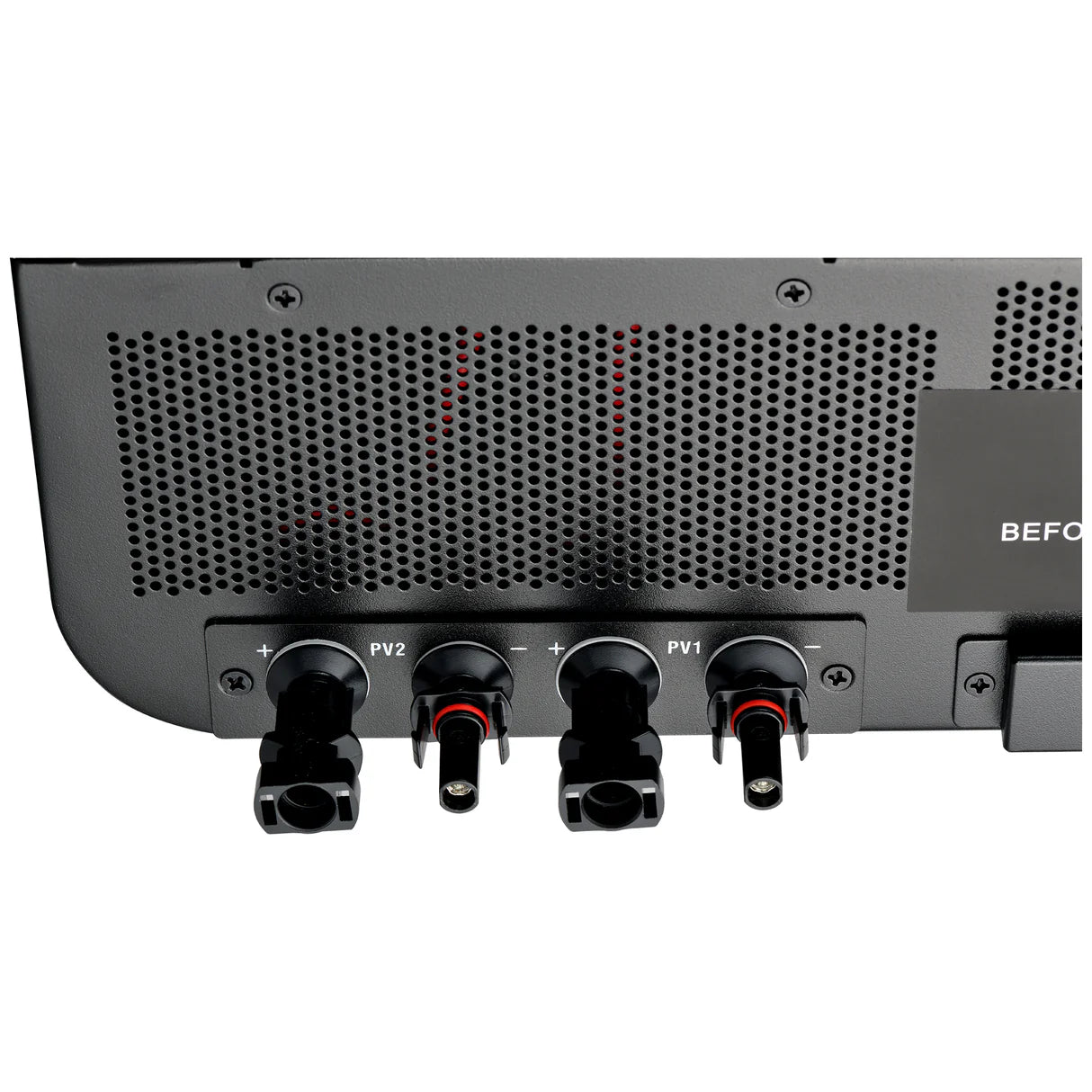

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A

PHYSICAL

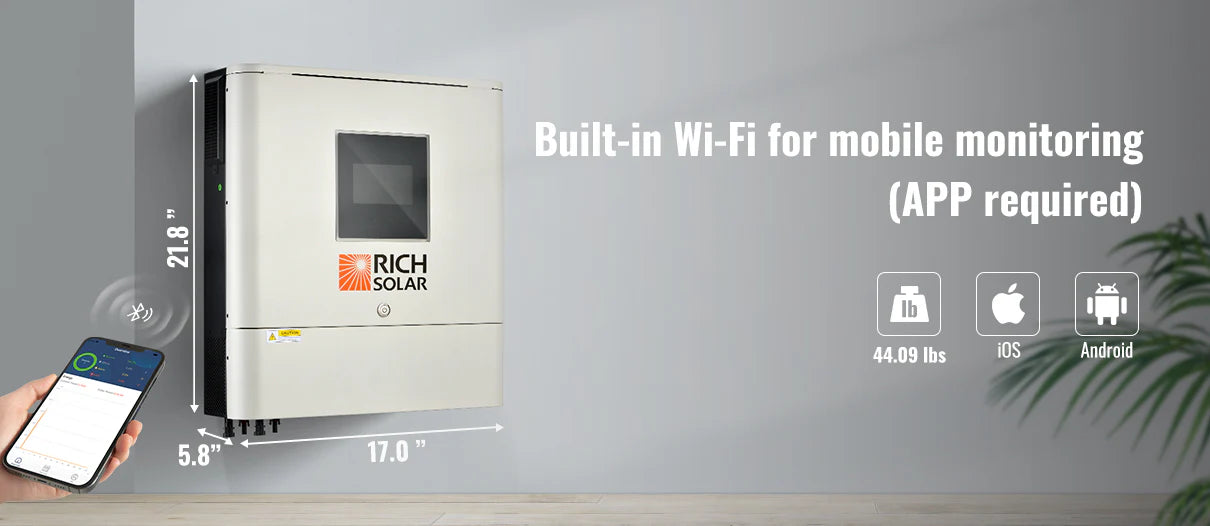

Dimension (D X W X H): 5.8 x 17.0 x 21.8 in
Net Weight: 44.09 lb

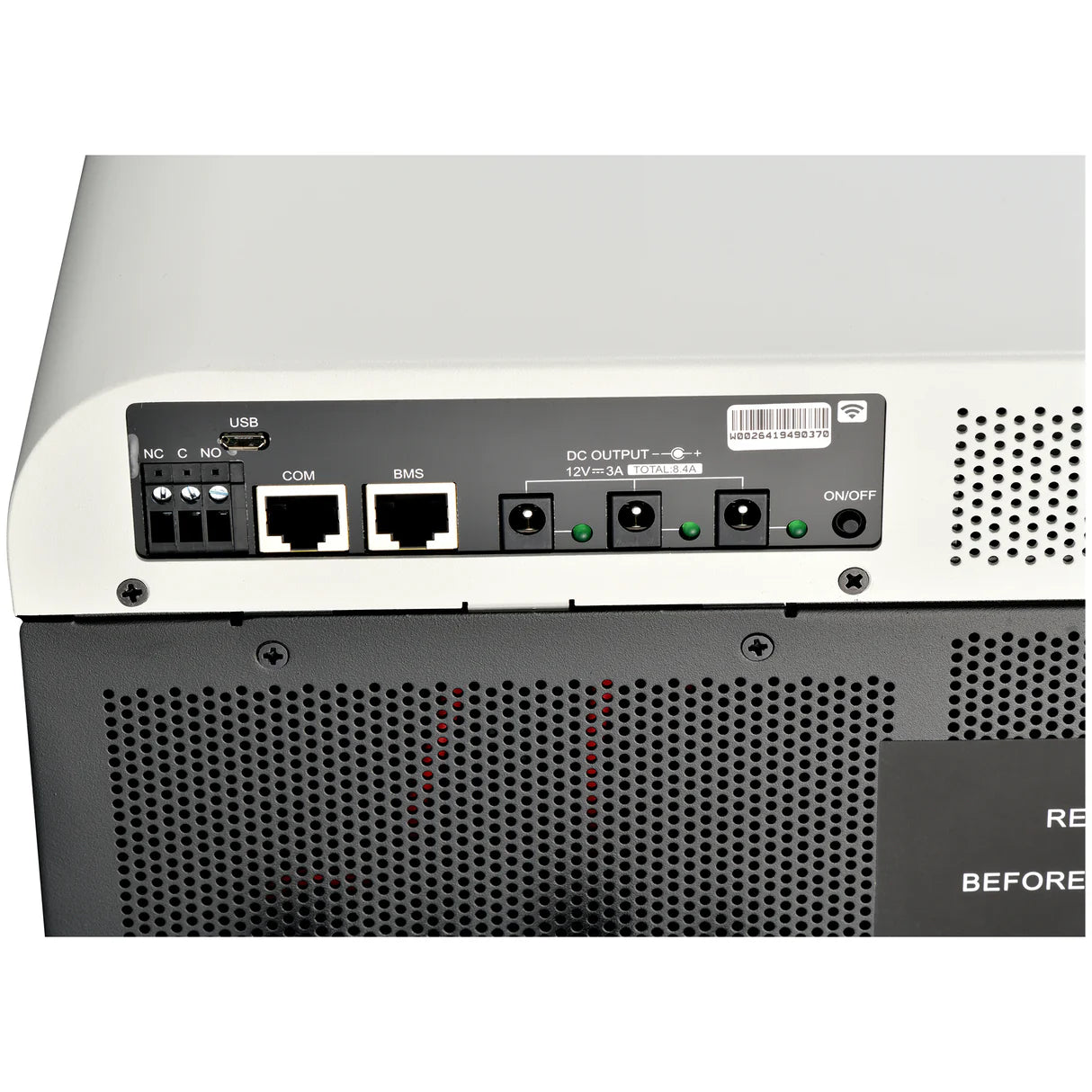

Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 14°F to 122°F
Storage Temperature: 5°F to 140°F

STANDARD

Compliance Safety: UL

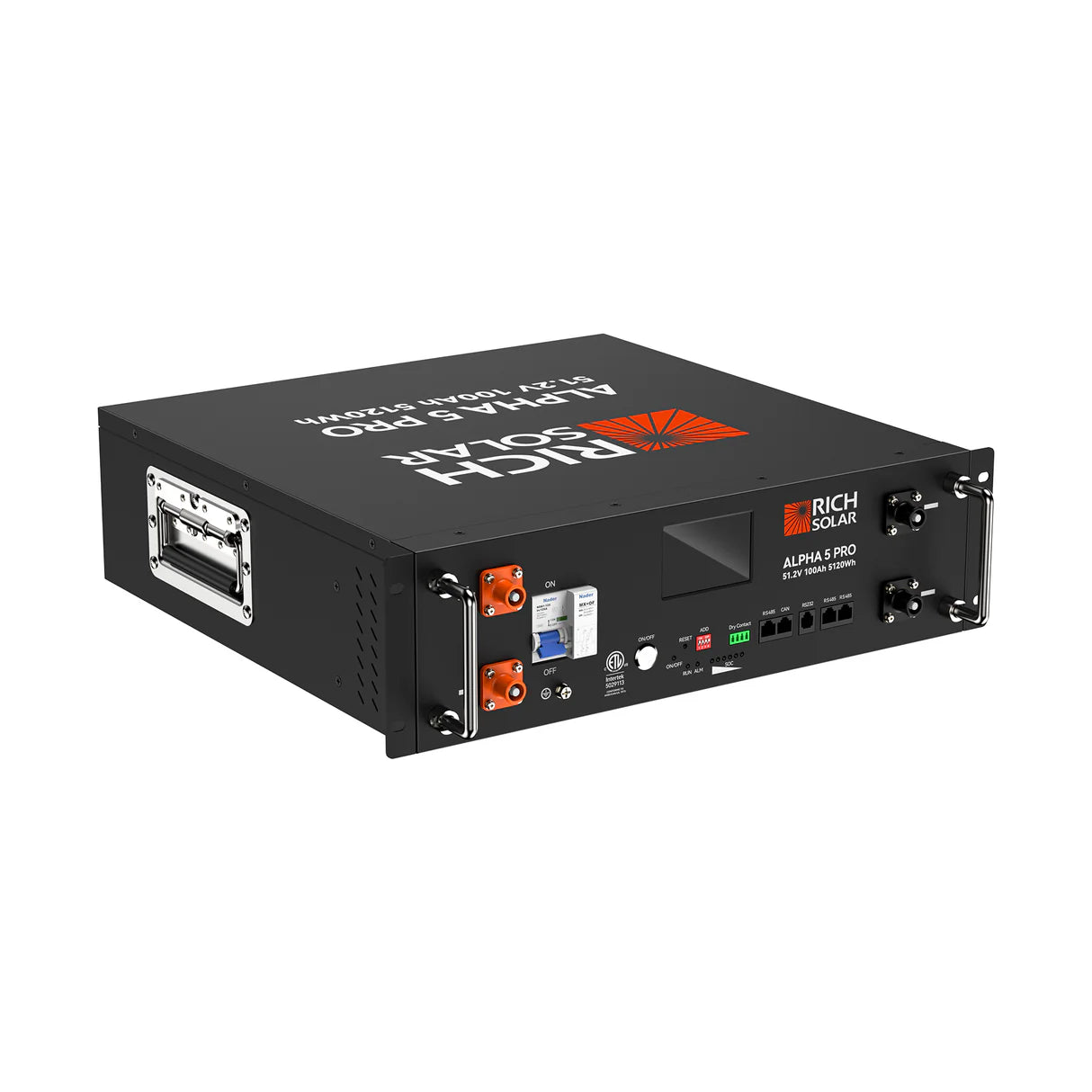

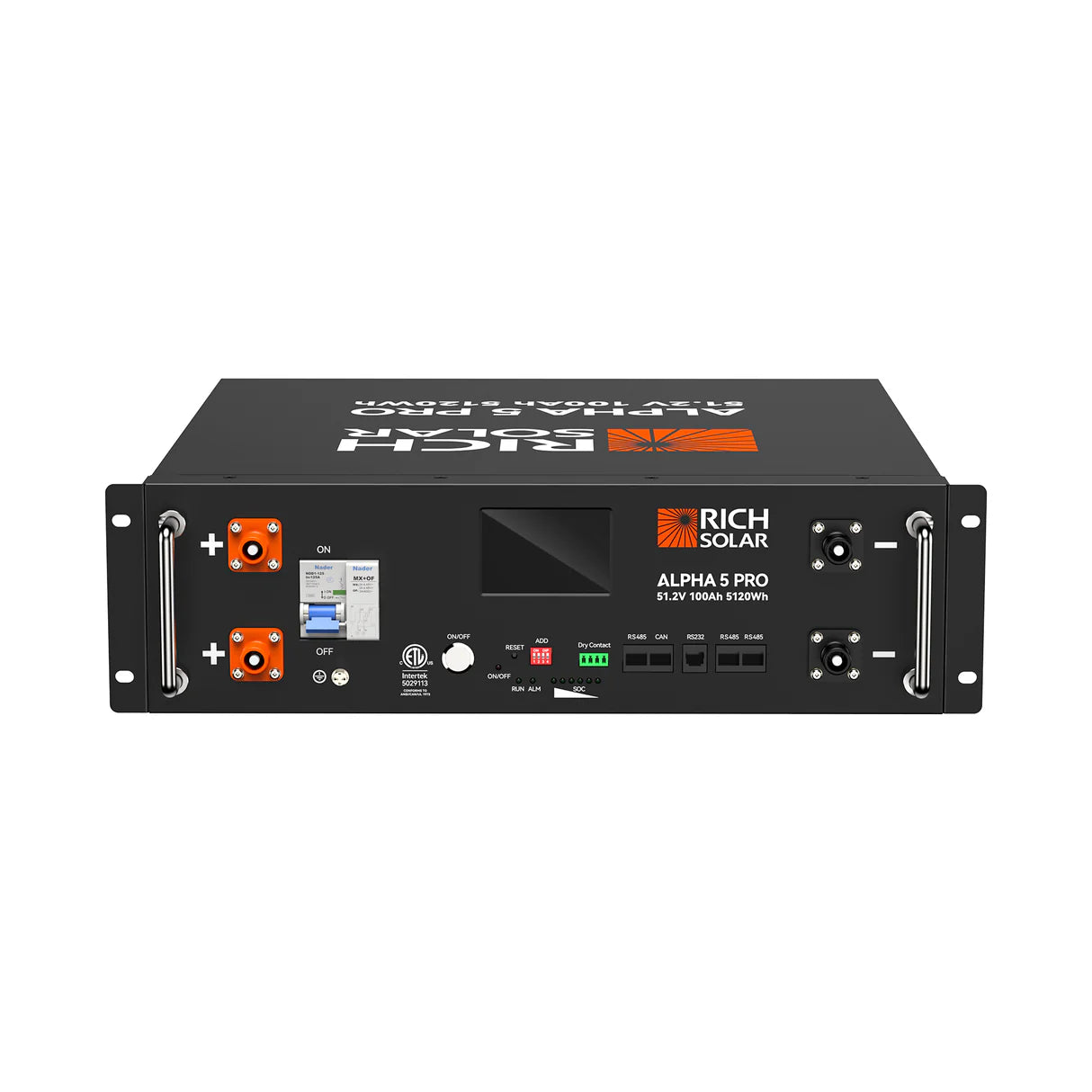

Battery Specifications

Electrical Specifications

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah

Minimum Capacity: 99.5Ah

Nominal Capacity: 5120Wh

Operating Specifications

Charging Voltage: 56V

Discharging Cutoff Voltage: 44.8V

Maximum Charging Current: 100A

Continuous Charge Current: 100A

Maximum Discharge Current: 100A

Physical Specifications

Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

Battery Weight: 99.2 lb

Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

Server Rack Weight: 224.9 lb

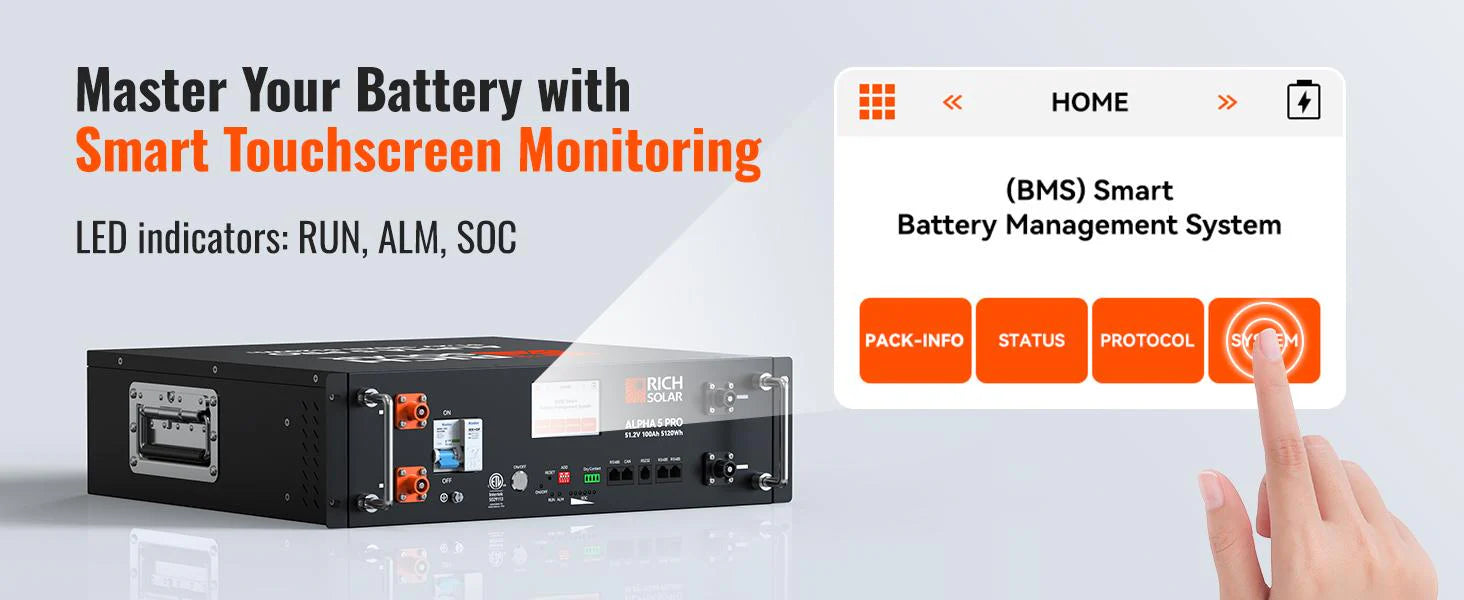

BMS Operation

Operation Voltage: 43.2~58.4V

Maximum Charging Current: 100A

Maximum Discharging Current: 100A

Maximum Charge Voltage (CC/CV): 57.6V

Overcharge Protection Voltage (Battery): 58.4V

Overcharge Protection Release Voltage (Battery): 54V

Over Discharge Protection Voltage (Battery): 43.2V

Over Discharge Protection Release Voltage (Battery): 47.2V

Over Discharge Primary Charge Overcurrent Protection Value: 110A

First Stage Charge Over Current Delay: 1s

Primary Discharge Overcurrent Protection Value: 110A

Primary Discharge Overcurrent Protection Delay: 1s

Secondary Discharge Overcurrent Protection Value: 150A

Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);

Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)

Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)

Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Certification: UL1973, UL9540A, FCC

Max. Expansion: 15 pcs in parallel

Communication Ports: RS485/RS232/CAN

Warranty: 10 Years Manufacturer Defect

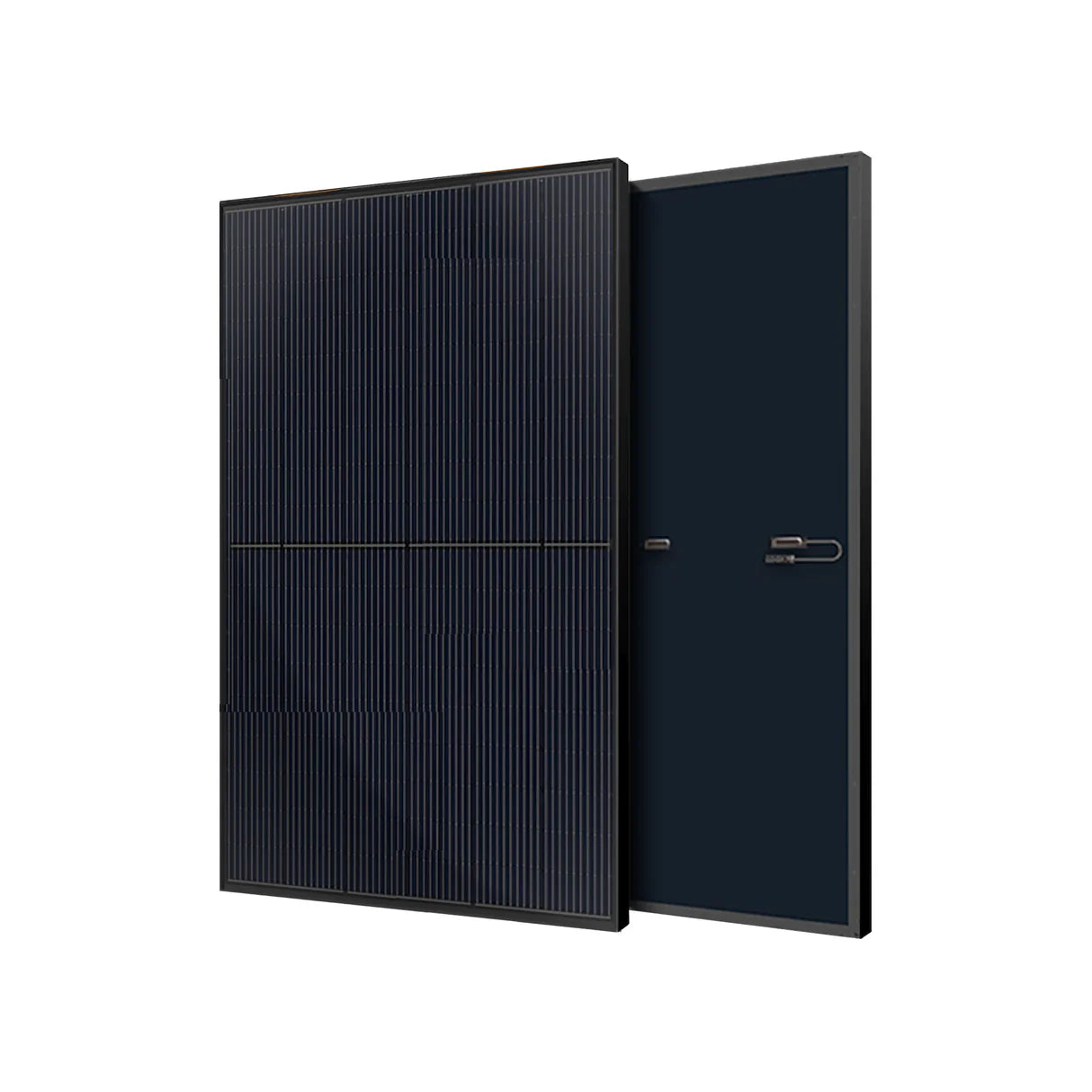

Solar panels

Features

10-busbar solar cell configuration
Mono PERC Technology
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug-and-play junction box
Industry-standard quick-connect cables work in series or parallel
Certified to withstand challenging environmental conditions
Excellent low-light performance on cloudy days, mornings, and evenings

Installation

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

SPECIFICATIONS

ATTRIBUTE	VALUE
Maximum Power(Pmax)	410W
Maximum Power Voltage(Vmp)	31.3V
Maximum Power Current(Imp)	13.1A
Open Circuit Voltage(Voc)	37.5V
Short Circuit Current(Isc)	13.8A
Maximum System Voltage(Vmax)	1500VDC
Temperature Range	-40°F ~ 185°F
Max Series Fuse Rating	25A
Weight	45.2 lb
Dimensions	67.9 x 44.6 x 1.2 in

BUILT-IN COMPONENTS

Panel leads (pair): 2 feet each
IP68-rated waterproof junction box
IP67-rated waterproof solar connectors
Bypass diodes built into the junction box

Shipping

Fast & Free Shipping Nationwide

We offer free shipping on all orders within the continental U.S. through our network of warehouses. Once you place your order, you’ll receive a confirmation email, and we’ll begin processing it right away.

For most items, you can expect them to ship within 2-4 business days. Delivery typically takes an additional 3-7 business days, either through FedEx or USPS. Please keep in mind that weather, traffic, carrier troubles, or other unforeseen circumstances can affect shipping times.

We’re committed to making the shipping process smooth and worry-free so you can enjoy your new solar products without delay!

Warranty

Comprehensive Warranty for Peace of Mind

We stand behind the quality of every product we sell, offering a full manufacturer’s warranty to ensure lasting performance.

Please check out the warranty page below for a detailed breakdown of warranties for each product.

off grid power solution

The system architecture provides excellent scalability with parallel battery expansion capabilities up to 15 units. The inverter works with utility mains or generator to charge batteries if necessary, which wasa big selling piont for me
