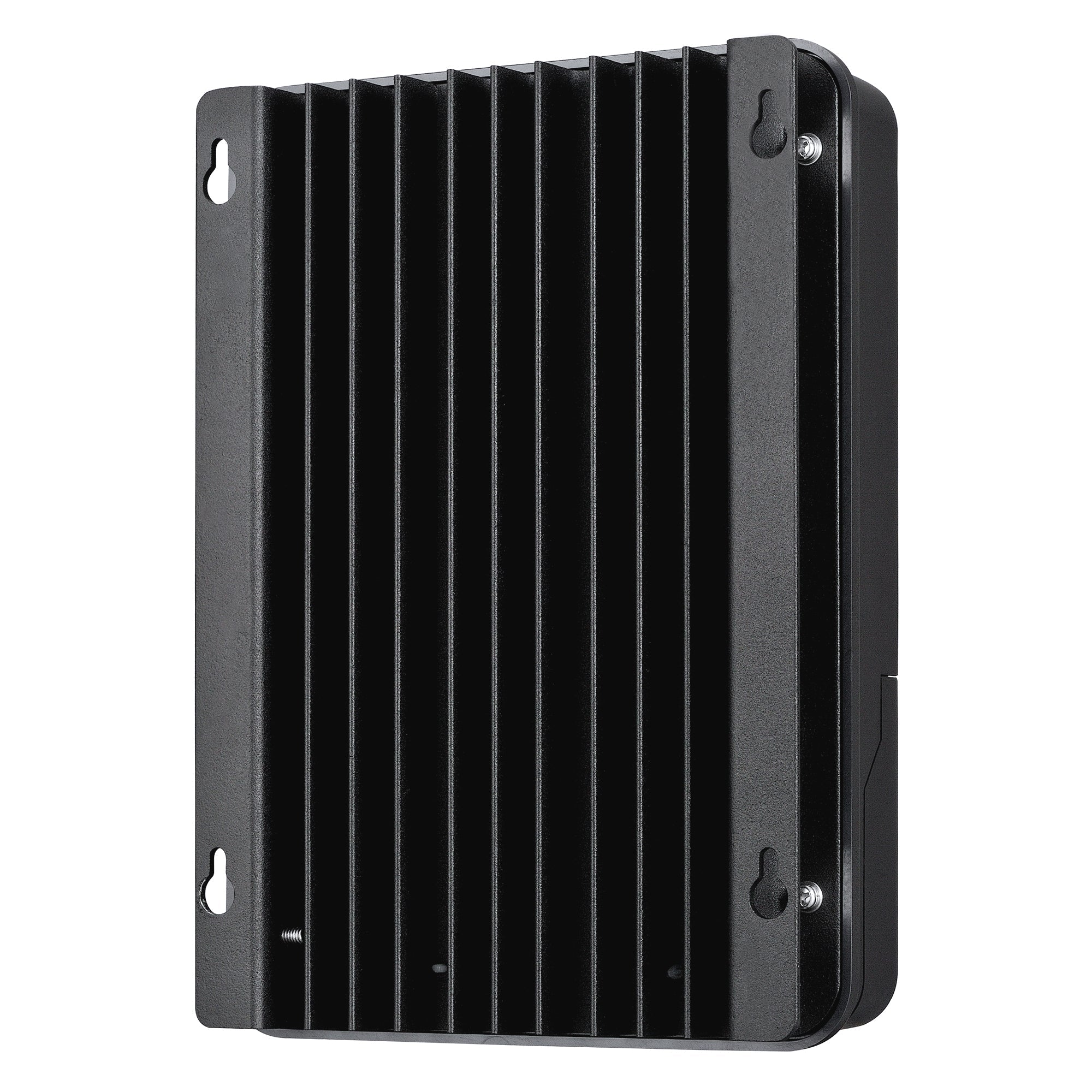

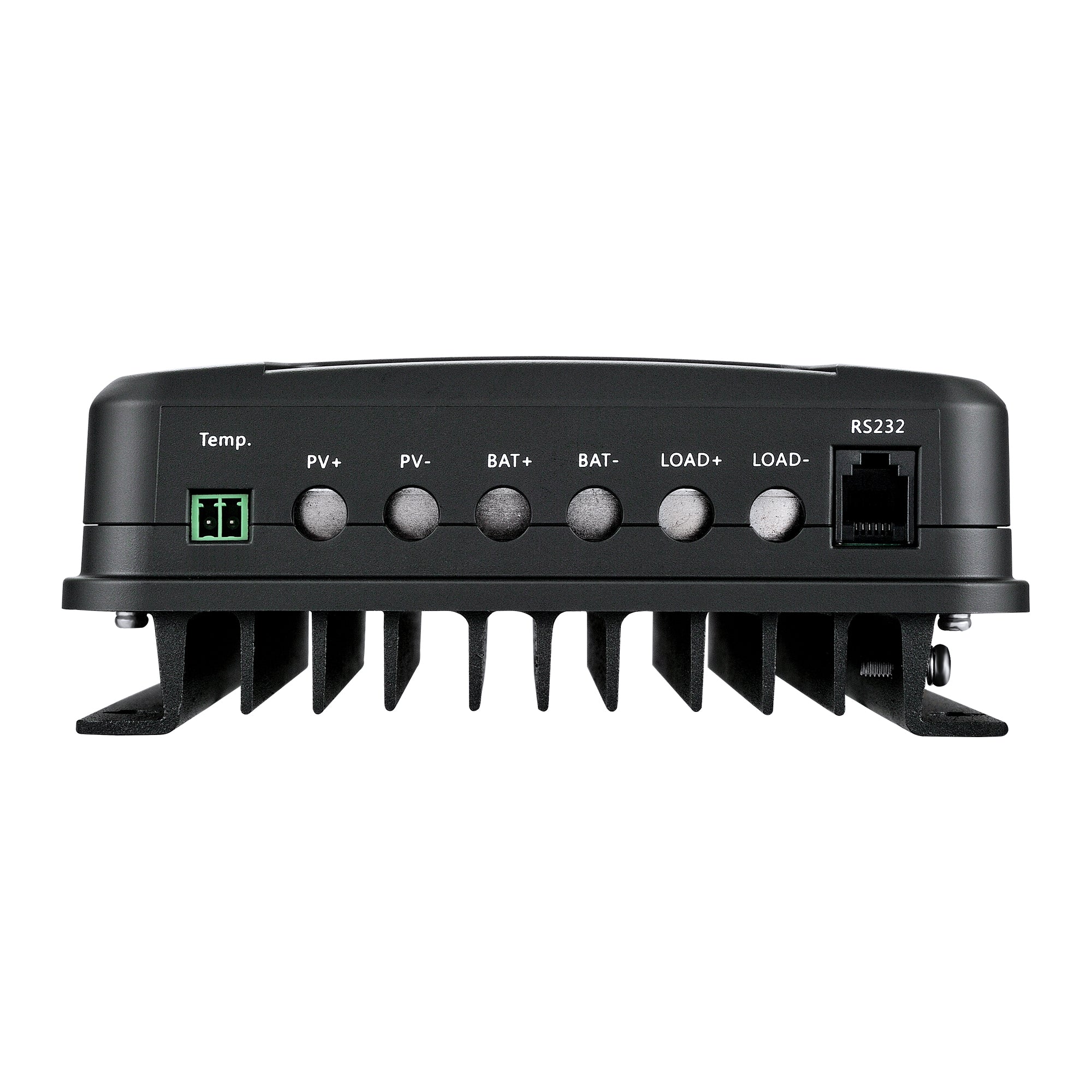

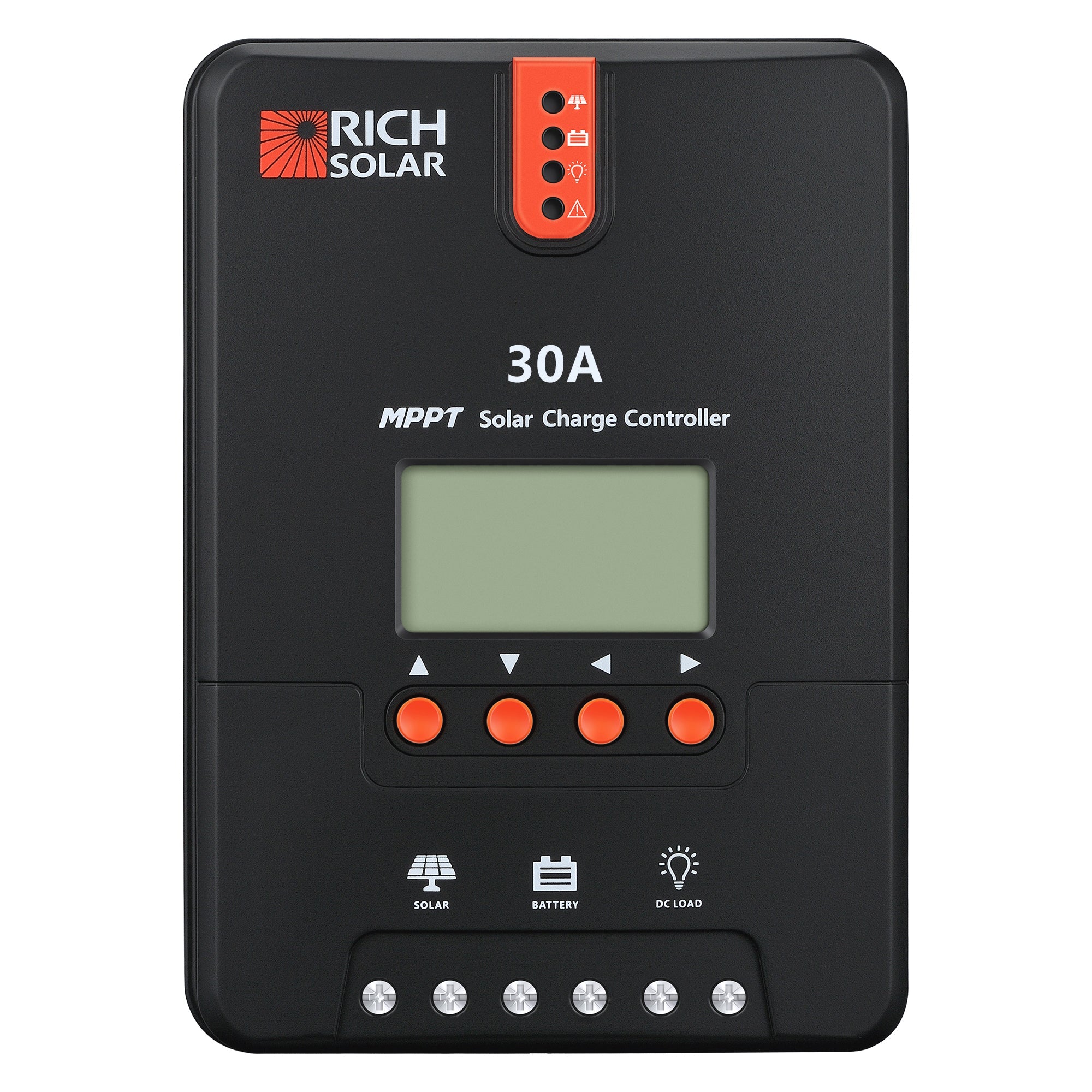

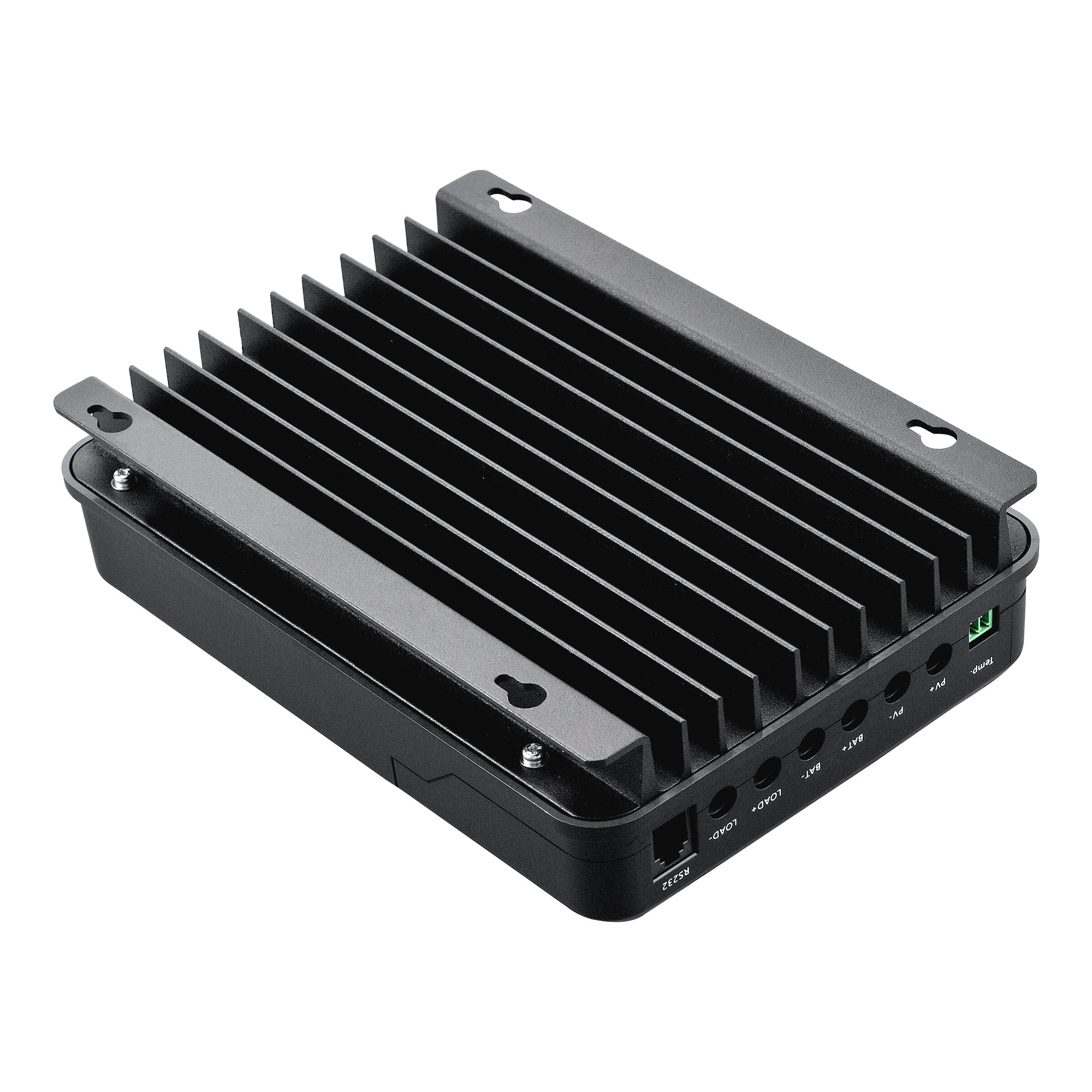

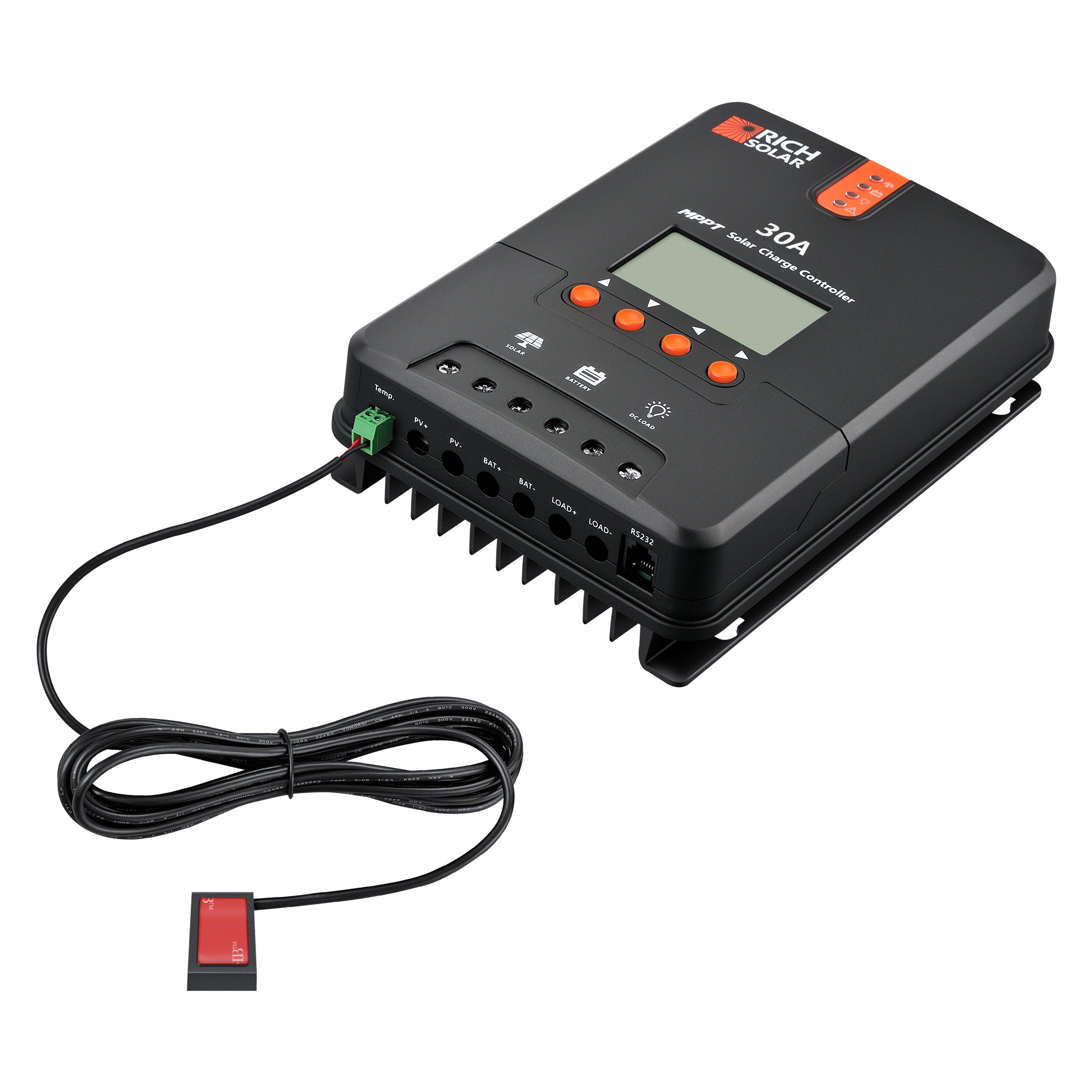

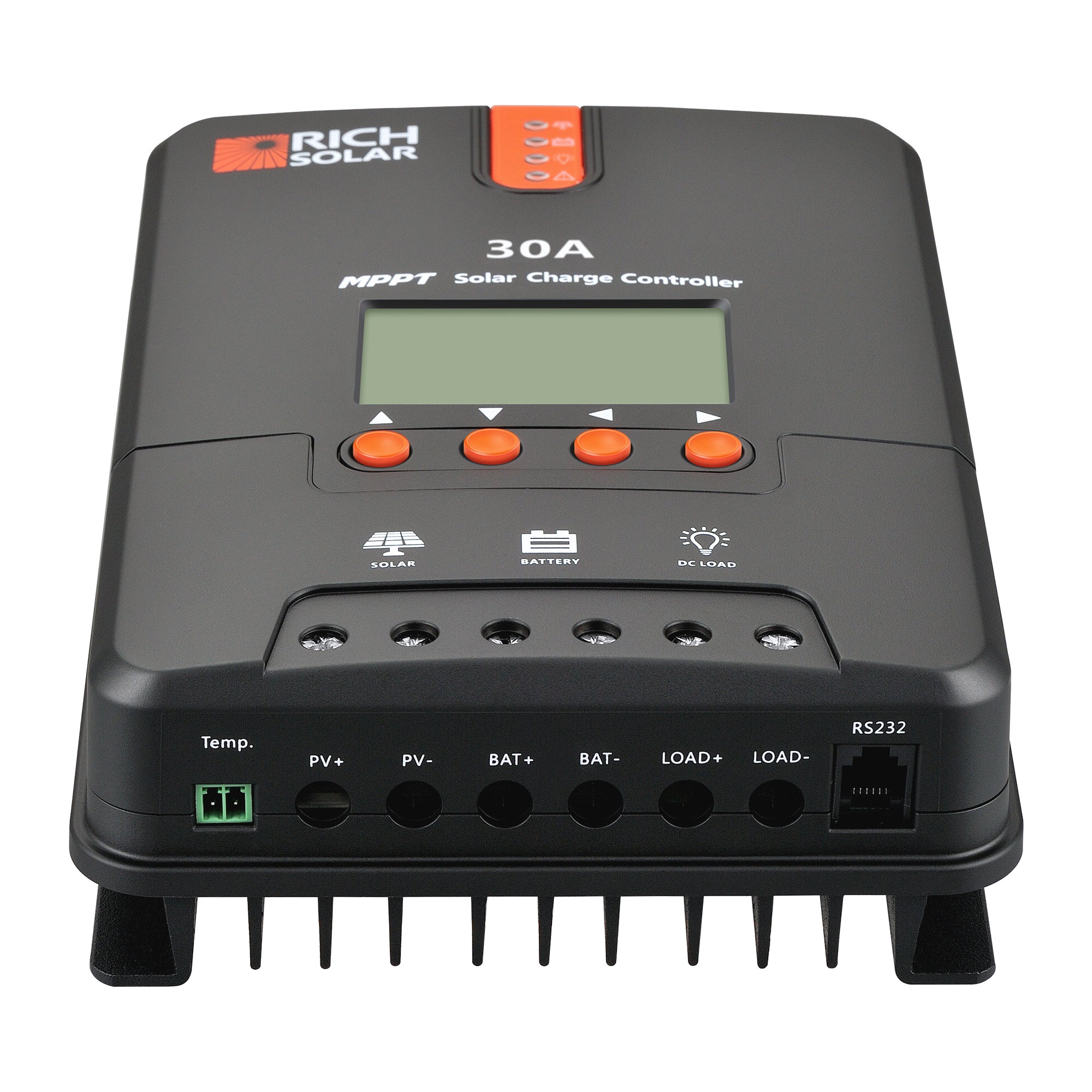

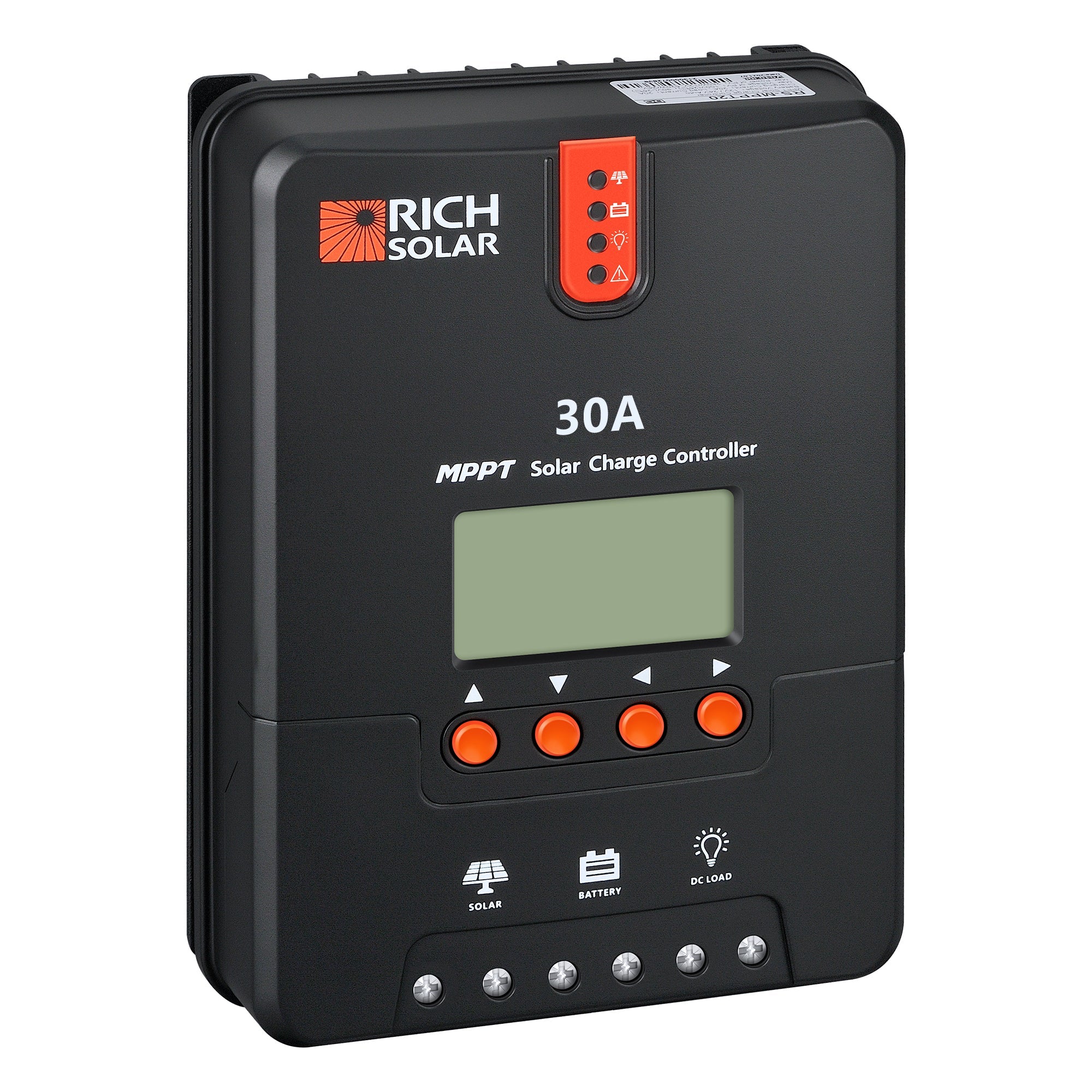

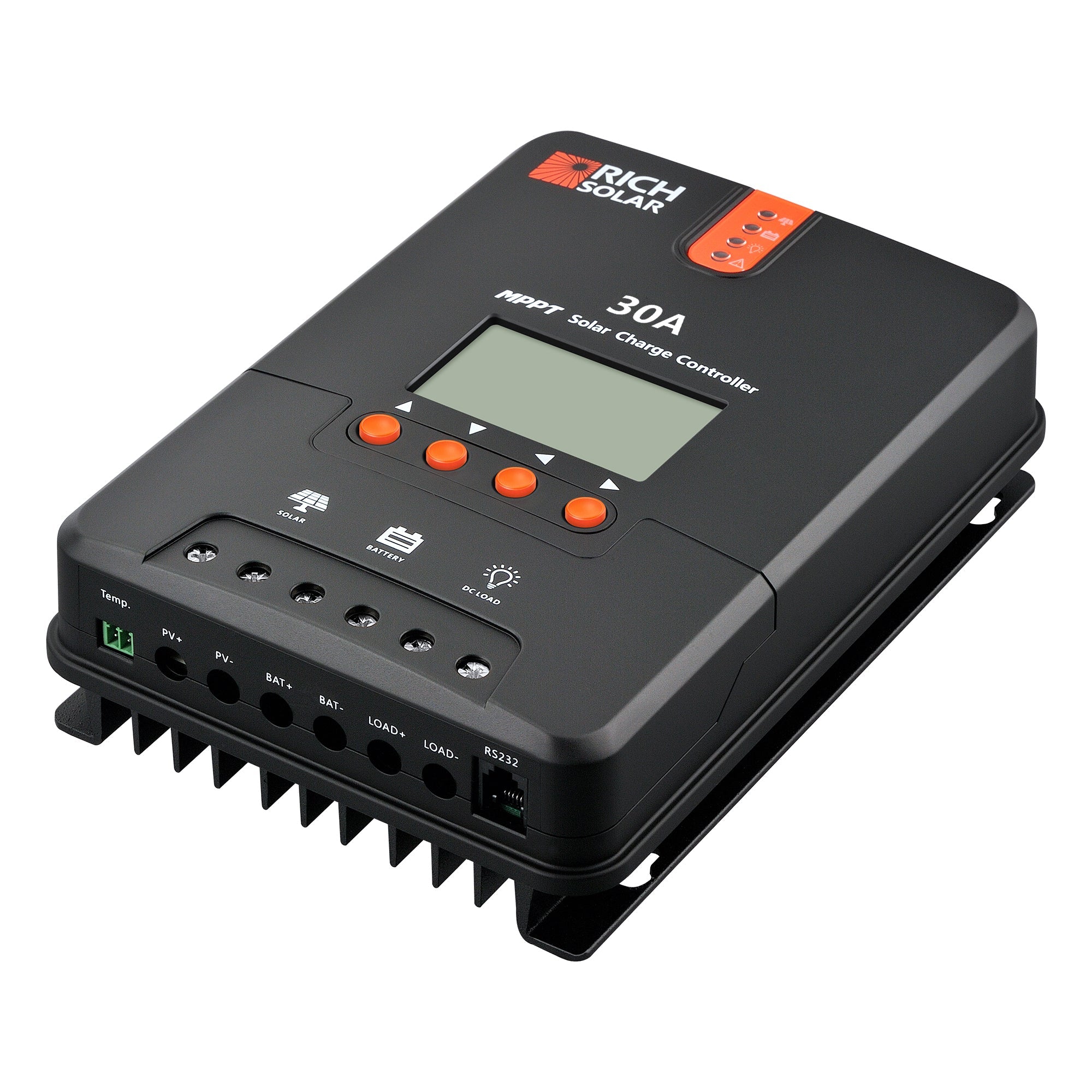

30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
30 Amp MPPT Solar Charge Controller
Rich Solar

30 Amp MPPT Solar Charge Controller

$139.99

We accept

Payment: american_expressPayment: apple_payPayment: diners_clubPayment: discoverPayment: google_payPayment: masterPayment: paypalPayment: shopify_payPayment: venmoPayment: visa
Pen and ruler Product info Plus

Features

  • Automatically detects 12V or 24V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port to communicate with BT-1 Bluetooth module.
  • Advanced maximum power point tracking algorithm can quickly locate the best working point in the l-V curve to significantly improve the system’s energy efficiency.

Specifications

  • Nominal System Voltage: 12V/24V Auto
  • Rated Charging Current: 30A
  • Rated Load Current: 20A
  • Max Solar Input Voltage: 100V(25?), 90V(-25?)
  • Discharge Circuit Voltage drop: = 0.15V
  • Net Weight: 4.41lbs
  • Overall Dimension: 9.37 x 6.81 x 2.85in
  • Battery Wire Diameter: 6mm²
  • Load Wire Diameter: 5mm²
  • No-load Loss: 0.7W to 1.2W
  • Battery Voltage: 9V to 35V
  • Max. Power Point Voltage Range: Battery Voltage +2V to 75V
  • Max. Photovoltaic System Input Power: 400W/12V, 800W/24V
  • Conversion Efficiency: =98%
  • MPPT Tracking Efficiency: >99%
  • Temperature Compensation Factor: -3mv//2V Default
  • Operating Temperature: -35°C to +45°C
  • Protection Degree: IP32
  • Communication Method: RS232
  • Altitude: =3000m
  • Max. Capacitive Load Capacity: 1000uF
